$529.95
$630.64
This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A turbocharger repair kit is a set of replacement parts used to fix a malfunctioning turbocharger. The kit typically includes items such as new bearings, seals, and gaskets necessary to restore the unit's function. The part number for this specific kit is 3803745. Proper maintenance of the turbocharger is essential for optimal engine performance and fuel efficiency in diesel-powered vehicles.
SPECIFICATIONS
Hazardous Material
Non-Hazardous (NOI, ICE/Auto)
Package Dimensions
11.8 x 11.3 x 2.63 in
Weight
3.1 lb

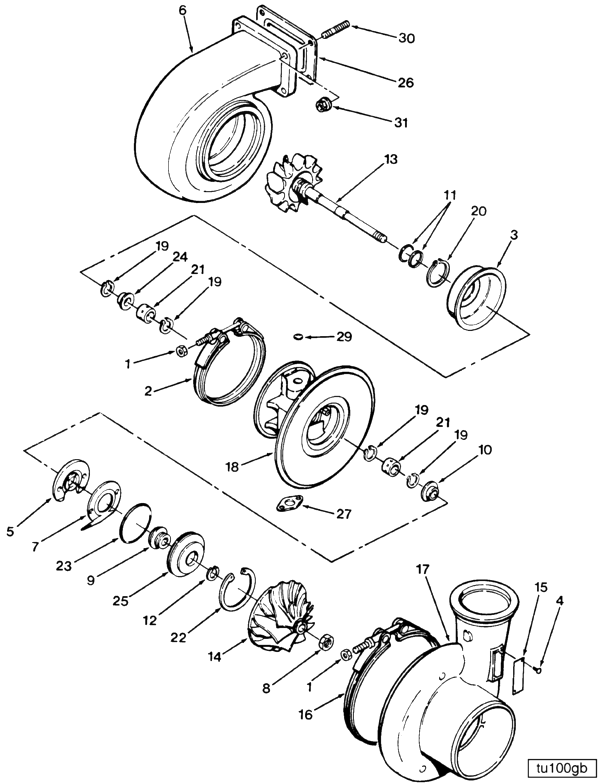

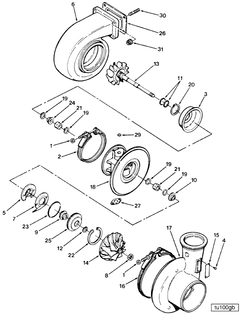

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| O Ring Seal | 1 | 3037537 |
| Turbocharger Gasket | 1 | 3069177 |
| Connection Gasket | 1 | 3202117 |
| Split Ring Seal | 2 | 3521441 |
| Split Ring Seal | 1 | 3521442 |
| v Band Clamp | 1 | 3527844 |
| Regular Hexagon Nut | 2 | 3529372 |
| v Band Clamp | 1 | 3532045 |
| Turbocharger Thrust Bearing | 1 | 3536075 |
| v Band Clamp | 1 | 3539458 |
| Retaining Ring | 1 | 3718373 |
| Turbocharger Bearing | 2 | 3722366 |
| Retaining Ring | 1 | 3723863 |
| O Ring Seal | 1 | 3751948 |
| Split Ring Seal | 2 | 3752951 |
| Oil Control Sleeve | 1 | 3757753 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
