$649.95
$773.44
This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A Turbocharger Repair Kit is a set of replacement parts designed to fix a damaged or worn-out turbocharger in a truck. The kit usually includes bearings, seals, gaskets, and other components that are necessary for the repair process. The purpose of the turbocharger is to increase the engine's power by compressing air and forcing it into the engine's cylinders. Over time, however, the turbocharger can become damaged or worn out due to heat and friction. A repair kit can be used to replace these worn-out parts and restore the turbocharger's performance back to its original level. The Part Number: 4027967 refers specifically to a repair kit for a particular type of truck model or engine series.
SPECIFICATIONS
Notes
Repair kit for this turbo
Package Dimensions
24.8 x 20.5 x 2.0 in
Weight
0.556 lb

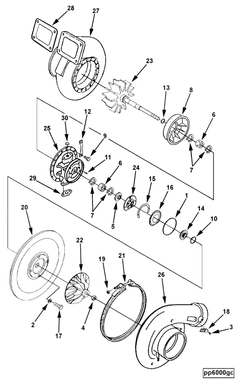

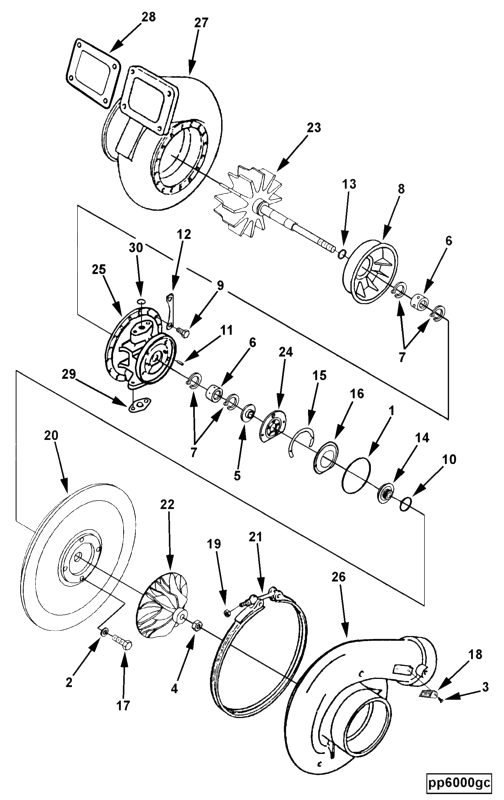

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Shim | 1 | 3524418 |
| Rectangular Ring Seal | 1 | 3502449 |
| Plain Washer | 4 | 3504967 |
| Retaining Ring | 4 | 3519641 |
| Hexagon Head Set Screw | 8 | 3521225 |
| Split Ring Seal | 1 | 3521442 |
| Lockplate | 4 | 3522904 |
| Split Ring Seal | 1 | 3523412 |
| Oil Slinger | 1 | 3523980 |
| Oil Baffle | 1 | 3524419 |
| Regular Hexagon Nut | 1 | 3529372 |
| Rectangular Ring Seal | 1 | 3534405 |
| Turbocharger Thrust Bearing | 1 | 3536914 |
| Thrust Collar | 1 | 3591522 |
| Turbocharger Bearing | 2 | 3598528 |
| Lock Nut | 1 | 3771005 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
