This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A Turbocharger Repair Kit, with part number 4027074, is a set of components used to repair a damaged or worn turbocharger in a truck engine. The kit includes all necessary parts to restore the turbocharger's performance, such as bearings, seals, and gaskets. A turbocharger is an important component of a truck engine that increases its power and efficiency by compressing air before it enters the cylinders. Over time, however, the turbocharger can wear down due to heat and friction or suffer damage from foreign objects entering the system. By using a Turbocharger Repair Kit like this one with part number 4027074, truck owners can extend the life of their vehicle and avoid costly repairs or replacements down the road.
SPECIFICATIONS
Package Dimensions
24.7 x 20.5 x 1.5 in
Weight
0.479 lb

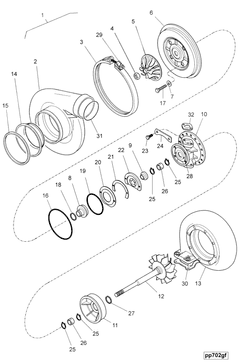

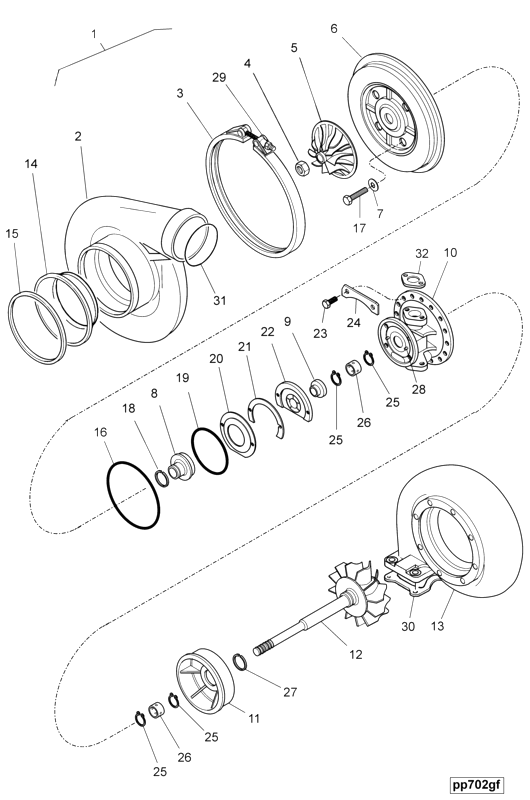

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Rectangular Ring Seal | 1 | 3502449 |
| Turbocharger Bearing | 2 | 3519627 |
| Retaining Ring | 4 | 3519641 |
| Hexagon Head Set Screw | 8 | 3521225 |
| Split Ring Seal | 1 | 3521442 |
| Lockplate | 4 | 3522904 |
| Split Ring Seal | 1 | 3523412 |
| Shim | 1 | 3524418 |
| Oil Baffle | 1 | 3524419 |
| Regular Hexagon Nut | 1 | 3529372 |
| Rectangular Ring Seal | 1 | 3534405 |
| Turbocharger Thrust Bearing | 1 | 3591532 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
