$979.95
$1,166.14
This truck part is made by Cummins®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
A Turbocharger Repair Kit is a set of replacement components designed to fix issues with a turbocharger. Part Number 3804574 is a specific kit that includes all the necessary parts to repair certain types of turbochargers. The kit may include items such as gaskets, seals, bearings, and other small components that are prone to wear or damage over time. Proper maintenance and repair of a turbocharger can help improve engine performance and extend the life of the vehicle.
SPECIFICATIONS
Hazardous Material
Non-Hazardous (NOI, ICE/Auto)
Package Dimensions
14.63 x 14.0 x 2.0 in
Weight
3.79 lb

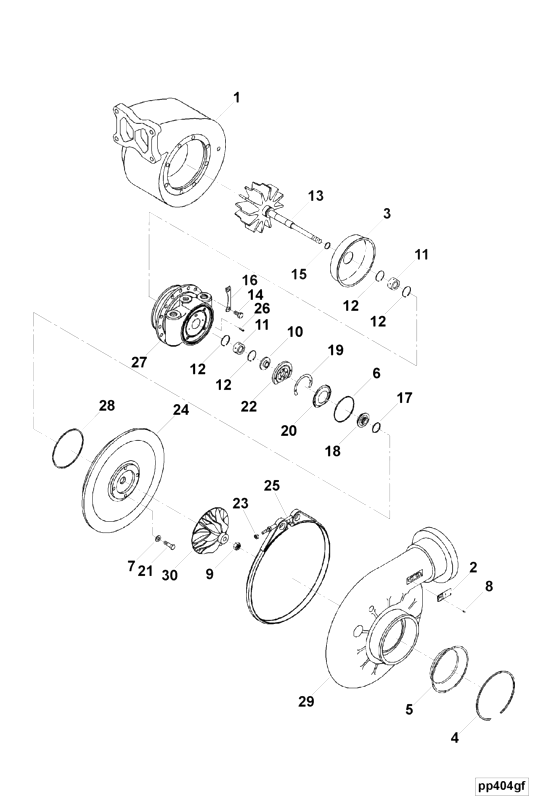

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| O Ring Seal | 1 | 3037537 |
| Connection Gasket | 1 | 3202117 |
| Turbocharger Gasket | 1 | 3331924 |
| Rectangular Ring Seal | 1 | 3502449 |
| Turbocharger Bearing | 2 | 3519627 |
| Retaining Ring | 4 | 3519641 |
| Hexagon Head Set Screw | 8 | 3521225 |
| Split Ring Seal | 1 | 3521442 |
| Lockplate | 4 | 3522904 |
| Split Ring Seal | 1 | 3523412 |
| Shim | 1 | 3524418 |
| Oil Baffle | 1 | 3524419 |
| Hexagon Head Set Screw | 4 | 3525073 |
| Regular Hexagon Nut | 1 | 3529372 |
| v Band Clamp | 1 | 3532617 |
| Rectangular Ring Seal | 1 | 3534405 |
| Turbocharger Thrust Bearing | 1 | 3536914 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
* Variable geometry turbocharger and electronic actuator repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after October 1, 2018.
* Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalyst Reduction (SCR) catalyst, and Electronic Control Module (ECM) repairs are not eligible to be claimed as over-the-counter under New or ReCon parts warranty for parts installed after January 1, 2020.
* These restrictions are only applicable to New parts and ReCon parts coverages for the components listed above sold to a customer in the US or Canada. All other coverages are excluded. All other regions are excluded.
