3582236C3

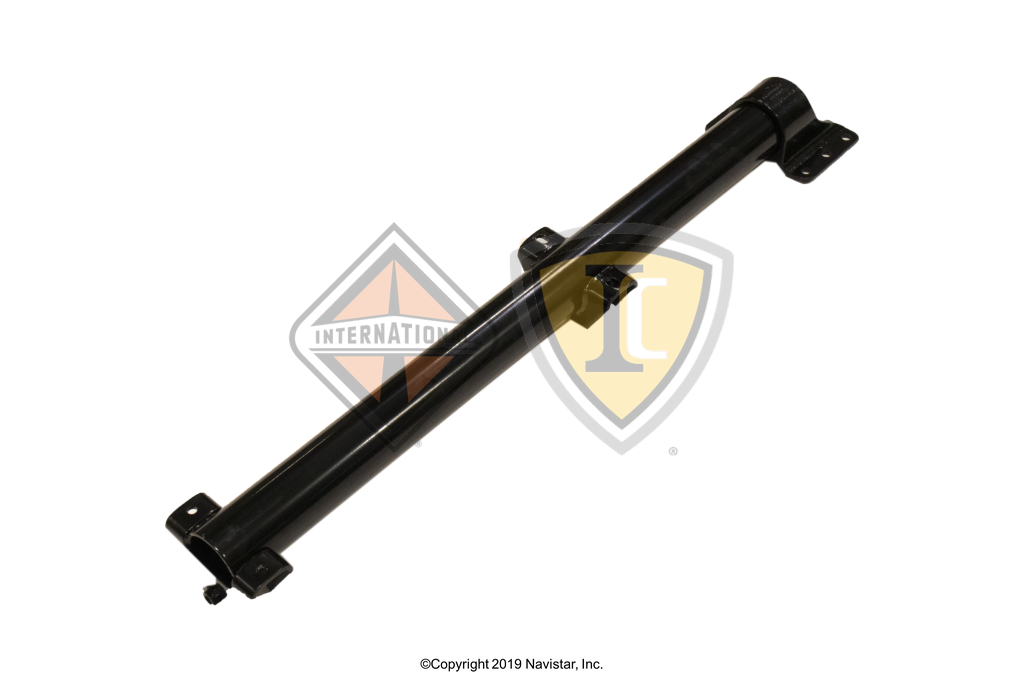

SUPPORT, MUFFLER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$469.95
$563.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
043-003-024
OEM Description
SUPPORT, MUFFLER
Package Dimensions
57.0 x 8.0 x 6.0 in
Weight
53.11 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SUPPORT MUFFLER SUPPORT | 1 | 3576477C2 |
| SUPPORT EXHAUST TUBE SUPT* | 1 | 3576469C3 |
| BRACE, MUFFLER SUPPORT MUFFLER SUPPORT | 1 | 3582235C1 |
| BRACE, MUFFLER SUPPORT MUFFLER SUPPORT | 1 | 3582234C1 |
| NUT, HEXAGON CLASS 10 M16 | 1 | 30170R1 |
CROSS REFERENCES
- UPS 4701119
- UPS 4701119
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
