3582236C2

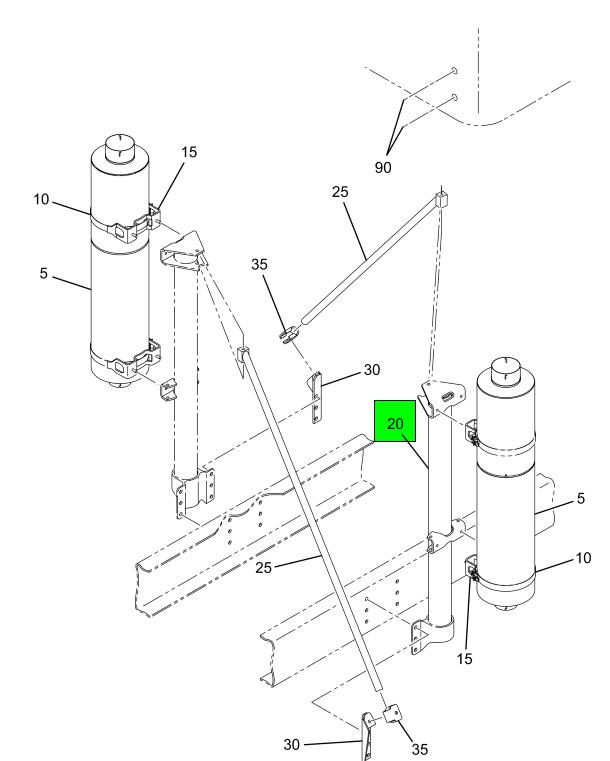

SUPPORT, VERTICAL MUFFLER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$419.95
$503.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SUPPORT MUFFLER*9000 VERTICAL
Weight
53.999 lbs

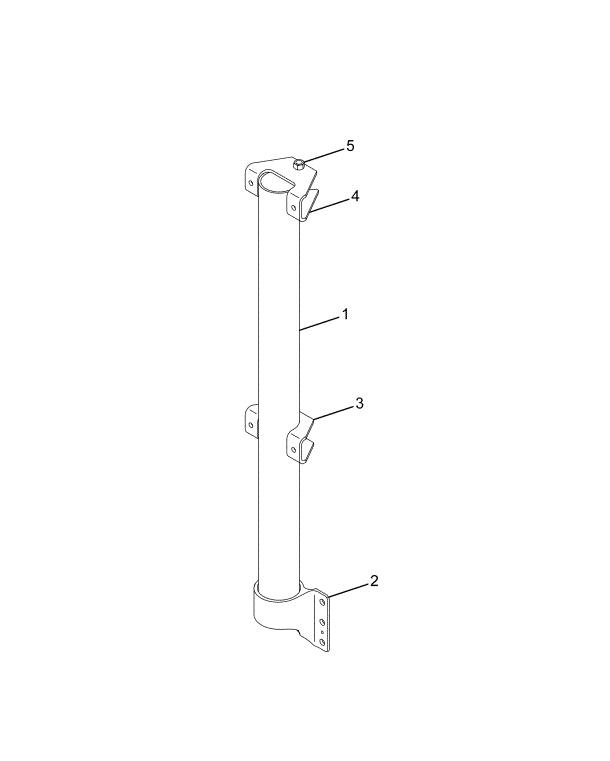

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| TUBE MUFFLER SUPPORT | 1 | 3576477C1 |
| SUPPORT EXHAUST TUBE SUPT* | 1 | 3576469C2 |
| BRACE, MUFFLER SUPPORT MUFFLER SUPPORT | 1 | 3582235C1 |
| BRACE, MUFFLER SUPPORT MUFFLER SUPPORT | 1 | 3582234C1 |
| NUT, HEXAGON CLASS 10 M16 | 1 | 30170R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
