4085820C91
SEAT,DRIVER, HP3 AIR SUSPENSIO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,549.95
$1,859.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, HP3 AIR SUSPENSION, MORDURA, FEDEX LOGO

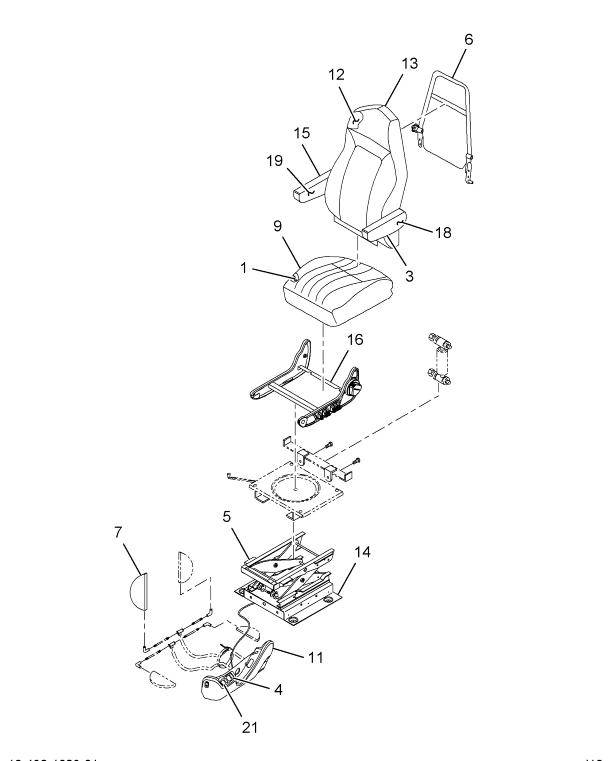

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED CUSHION | 1 | 2516464C91 |
| VALVE, CONTROL LUMBAR | 1 | 2600683C1 |
| UPHOLSTERED BACK | 1 | 2516465C91 |
| FEDEX BACK COVER | 1 | NS23094257 |
| MOUNTING PLATE, SEAT BASE TO FLOOR | 1 | 2516472C91 |
| REST ARM RIGHT HAND | 1 | 2606875C1 |
| LOWER CUSHION /FR | 1 | 2516470C1 |
| COVER ARM CHAR MRD RH | 1 | NS235065132 |
| LH AR CVR, CHARCOAL MORDURA | 1 | NS235065131 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| REST, ARM LH | 1 | 2607773C1 |
| REST, ARM LH | 1 | 2606874C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| PEDESTAL SEAT | 1 | 2516469C91 |
| FR, BACK FR | 1 | 2515948C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| PRESSURE PROTECTION VALVE | 1 | 2516471C1 |
| FEDEX CUSHION COVER | 1 | NS23094323 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
