3693119C93
SEAT, DRIVER, SLEEPER, AIR, MORDURA, BLUE, SWVL, DL ARM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, AIR, MORDURA, BLUE, SWVL, DL ARM

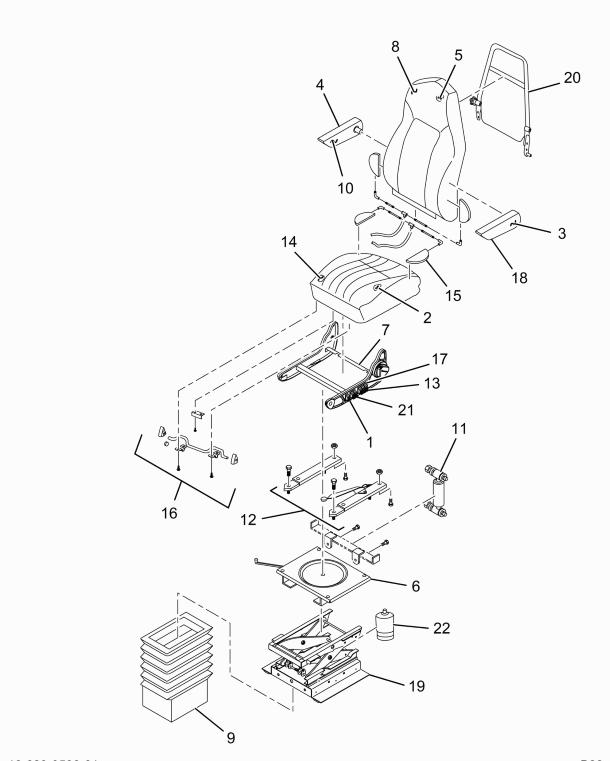

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER ARMREST RIGHT HAND | 1 | 2607371C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| CUSHION, SEAT INDV SEAT | 1 | 2607372C91 |
| CUSHION, SEAT INDV SEAT | 1 | 2607366C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
| ARMREST AND COVER BLUE LH | 1 | 2607368C1 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| KIT, AIR LUMBAR SEAT | 1 | 2509416C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| COVER ARMREST LEFT HAND | 1 | 2607370C1 |
| ARMREST AND COVER BLUE, RIGHT HAND | 1 | 2607369C1 |
| CUSHION, BACK INDV SEAT | 1 | 2607367C91 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| CUSHION, SEAT INDV SEAT | 1 | 2607373C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
