3693119C92

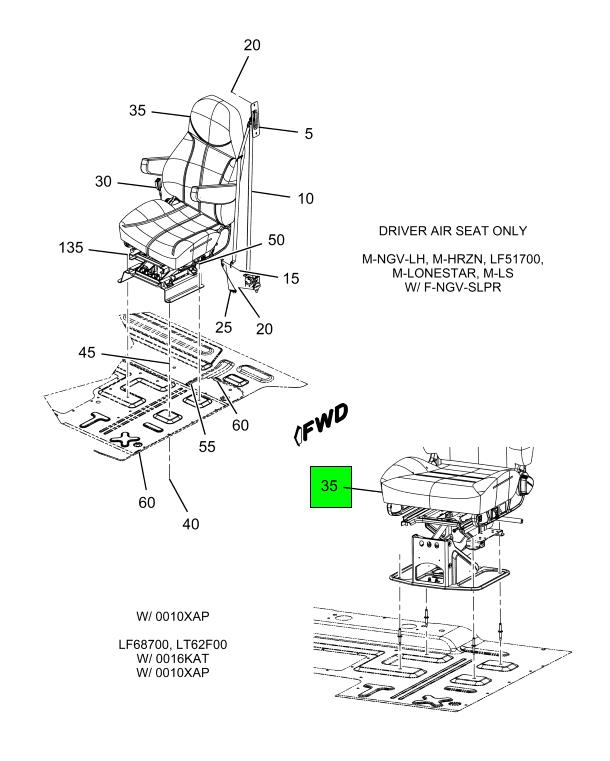

SEAT, DRIVER SLEEPER, AIR, MORDURA, BLUE, SWVL, DL ARM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$999.95
$1,199.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER SLEEPER, AIR, MORDURA, BLUE, SWVL, DL ARM
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2594770C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL SEAT | 1 | 2603334C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| ARMREST AND COVER BLUE LH | 1 | 2607368C1 |
| ARMREST AND COVER BLUE, RIGHT HAND | 1 | 2607369C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
