3624378C95
SEAT, DRIVER, DAYCAB, AIR, CLOTH, HIGH, RED
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,399.95
$1,679.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT, DRIVER, DAYCAB, AIR, CLOTH, HIGH, RED
Weight
101.2022 lbs

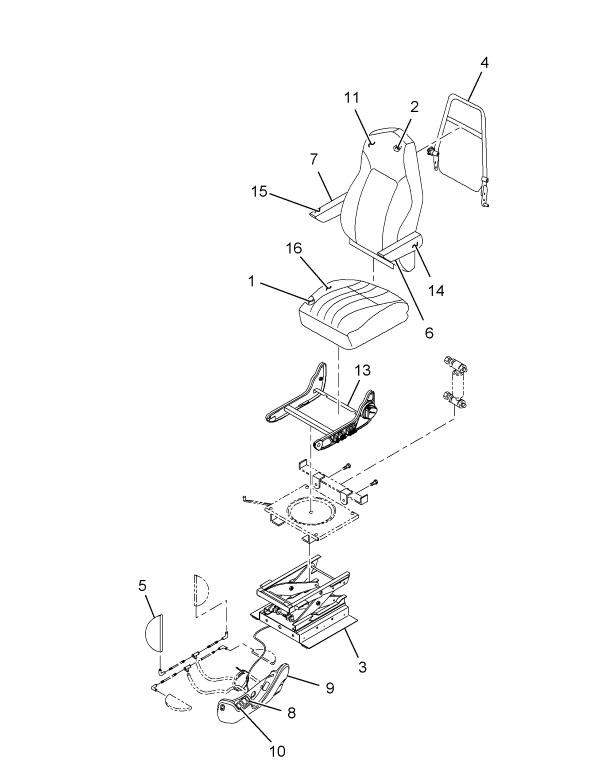

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT RED BRICK CLOTH AND VINYL | 1 | 2607805C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER BACK CUSHION | 1 | 2607808C1 |
| FR, SEAT LOWER | 1 | 2594709C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| COVER SEAT CUSHION RED BRICK CLOTH AND VINYL | 1 | 2607807C1 |
| CUSHION, BACK INDV SEAT | 1 | 2607806C91 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
CROSS REFERENCES
- NATL ST 4003113CF322
- NATL ST 4003113CF322
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
