3624378C94
SEAT, DRIVER DAYCAB, AIR, CLOTH, HIGH, RED, DUAL DAMP
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$979.95
$1,175.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER DAYCAB, AIR, CLOTH, HIGH, RED, DUAL DAMP
Weight
129.0014 lbs

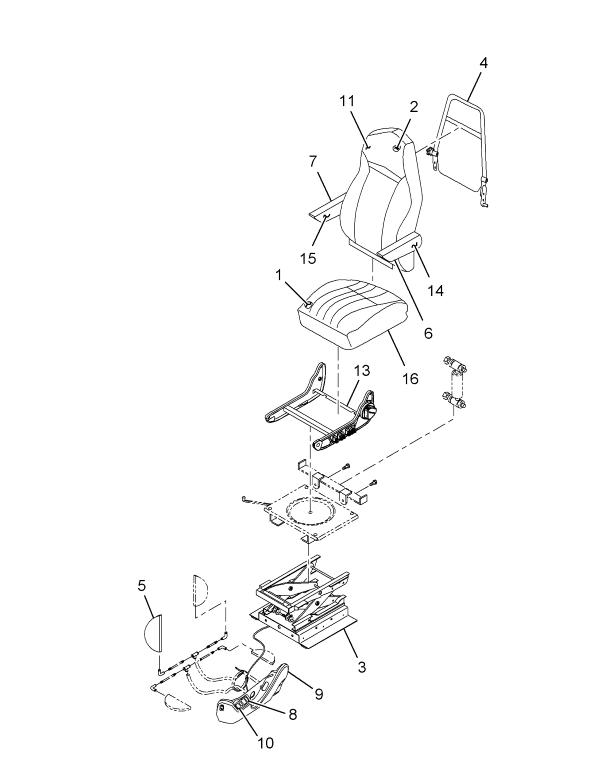

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT RED BRICK CLOTH AND VINYL | 1 | 2607805C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER BACK CUSHION | 1 | 2607808C1 |
| FR, SEAT LOWER | 1 | 2594709C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| CUSHION, BACK INDV SEAT | 1 | 2607806C91 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
