3547537C91
SEAT, MID BACK DRIVERS GRAY VINYL/CLOTH 2296H-20
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$559.95
$671.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-003
OEM Description
SEAT, MID BACK DRIVERS GRAY VINYL/CLOTH 2296H-20

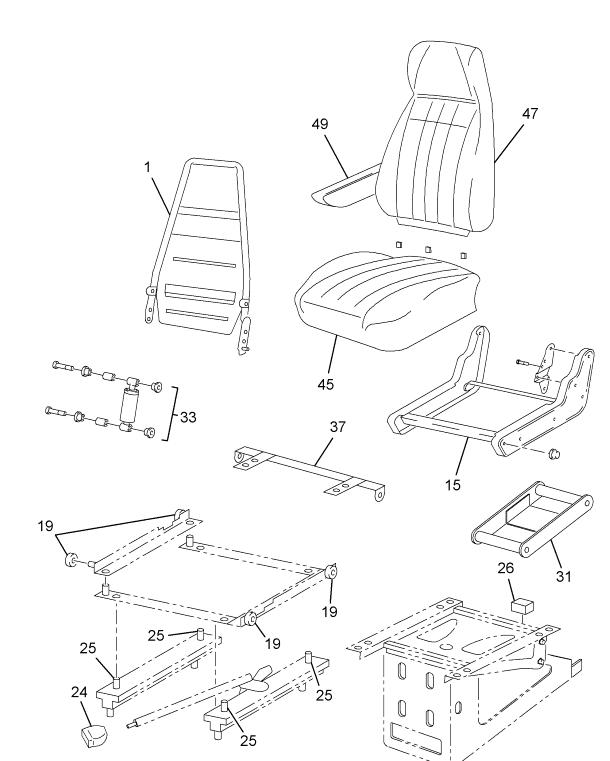

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK MID BACK | 1 | 2505882C1 |
| FR, SEAT LOWER | 1 | 2505878C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| STUD, TRACK | 4 | 2502303C1 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| ARM, LOWER W/BUSHINGS | 2 | 2502317C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685458C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| CUSHION, SEAT GRAY VINYL/CLOTH | 1 | 2505574C91 |
| COVER, SEAT CUSHION SEAT BOTTOM GRAY VINYL/CLOTH | 1 | 2505629C1 |
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| CUSHION, SEAT BACK GRAY VINYL/CLOTH | 1 | 2505604C91 |
| COVER, MID BACK SEAT CUSHION SEAT BACK GRAY VINYL/CLOTH | 1 | 2505628C1 |
| ARMREST LIGHT GRAY VINYL LEFT HAND | 1 | 3560042C1 |
| ARMREST LIGHT GRAY VINYL RIGHT HAND | 1 | 3551714C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502277C91 |
| BRACKET, SEAT MOUNTING | 1 | 2501370C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
CROSS REFERENCES
- NATL ST &60084.10A
- NATL ST &60084.10A
- NATL ST &60084.10AO03
- NATL ST &60084.10AO03
- NATL ST 60084.10A003
- NATL ST 60084.10A003
- NATL ST 6008410A003
- NATL ST 6008410A003
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
