3514763C93
SEAT 2296H-20 GRAY VN/CL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$559.95
$671.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, OCCUPANT DR /PASS MED BACK GRAY VIN/CLO CAR/H

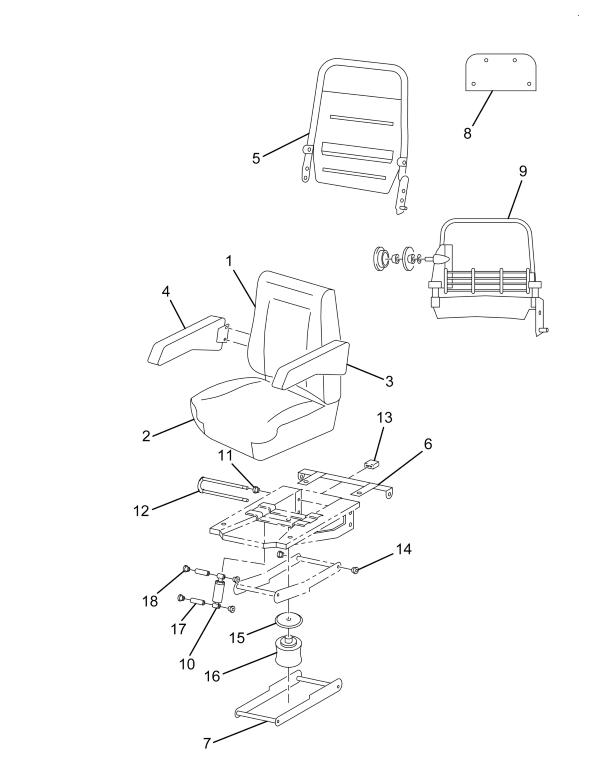

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, MID BACK SEAT BACK VINYL/CLOTH | 1 | 2501360C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| SLEEVE SEAT MOUNTING SHAFT | 8 | 1660398C1 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2505979C91 |
| RING, SNAP | 4 | 544968R1 |
| SHAFT ASSEMBLY, SEAT BASE | 2 | 483165C1 |
| BUMPER, SEAT FR | 1 | 337091C1 |
| BUSHING, SEAT ADJUSTER | 8 | 574906C1 |
| WASHER, AIR SPRING | 1 | 1660397C1 |
| SPRING, AIR SEAT | 1 | 397102C1 |
| BUSHING, SHOCK ABSORBER SEAT | 2 | 337088C1 |
| BUSHING, SHOCK ABSORBER SEAT NYLON | 4 | 337087C1 |
| CUSHION, SEAT GRAY VINYL/CLOTH | 1 | 2501355C91 |
| ARMREST GRAY LEFT HAND | 1 | 2033154C1 |
| ARMREST GRAY VINYL RIGHT HAND | 1 | 2015186C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685458C1 |
| ARM, LOWER W/BUSHINGS | 1 | 2502317C91 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| BRACKET, SEAT MOUNTING | 2 | 2501370C1 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| NUT, 5/16-18 LOCK | 8 | NS17706049 |
| ELBOW, 90 DEGREE BARBED | 1 | NS18002753 |
| FITTING, "T" HOSE QUICK DISCONNECT 1/4" O.D. | 1 | 2502986C1 |
| COVER, SEAT CUSHION SEAT BOTTOM GRAY VINYL/CLOTH | 1 | 2502262C1 |
| COVER, MID BACK SEAT CUSHION GRAY CLOTH/VINYL | 1 | 2502256C1 |
| SUPPORT, FLEX-O-LATOR | 1 | 1660400C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
