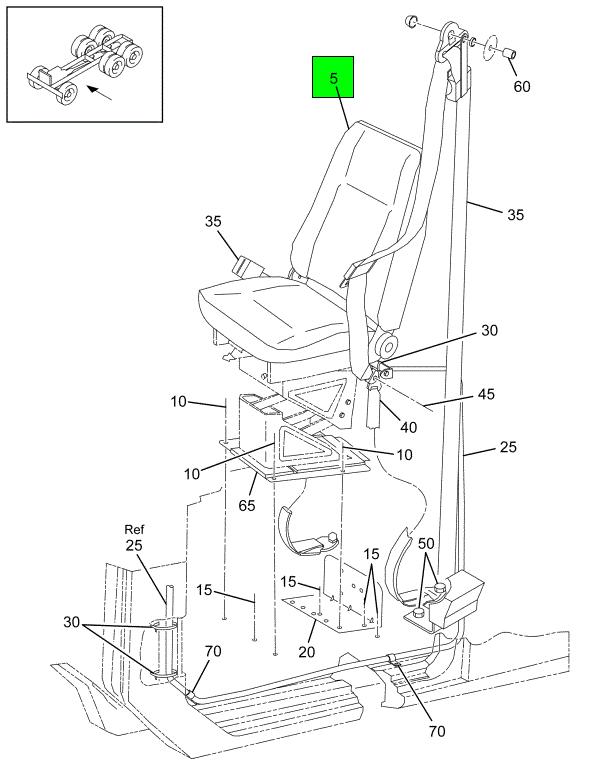

3547529C91
SEAT, DRIVERS AIR SUSPENSION GREYVINYL/VINYL 2195H-20
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$829.95
$995.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, DRIVERS AIR SUSPENSION GREYVINYL/VINYL 2195H-20
Weight
110.23 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BRACKET, MOUNTING SEAT PEDESTAL | 1 | 2505006C1 |
| CUSHION, SEAT GRAY VINYL | 1 | 2505577C91 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2504133C91 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2505385C1 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ELBOW, HOSE CONNECTOR 90 DEGREE | 1 | 571156C1 |
| RING, SNAP | 4 | 544968R1 |
| BASE, MOUNTING SEAT LOWER | 1 | 2505382C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2505383C1 |
| CUSHION, SEAT BACK GRAY VINYL | 1 | 2505606C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| BUSHING, SEAT ARM SPACER | 8 | 2505470C1 |
| ARMREST LIGHT GRAY VINYL RIGHT HAND | 1 | 3551714C1 |
| ARMREST LIGHT GRAY VINYL LEFT HAND | 1 | 3560042C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 1685458C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| FR, SEAT BACK MID BACK | 1 | 2505882C1 |
| FR, SEAT LOWER | 1 | 2505878C1 |
| BEARING, ROLLER ASSEMBLY CHUGGER SEAT | 4 | 1685465C1 |
| KNOB, SEAT TRACK | 1 | 2505380C1 |
| BUMPER, SEAT STOP | 1 | 2505384C1 |
| ARM, ASSEMBLY LOWER F/LTD UP- STOP | 1 | 2505386C91 |
| RETAINER, SEAT AIR SPRING | 1 | 1685464C1 |
| COVER, SEAT SUSPENSION | 1 | 1697601C1 |
| NUT, 5/16-18 LOCK | 1 | NS17706049 |
| BRACKET, SEAT RECLINE LIMITING | 1 | 2590579C91 |
| SUPPORT, CHUGGER | 1 | NS22972301 |
| NUT AND WASHER ASSEMBLY 5/16-18 | 2 | NS22815201 |
| ELBOW, 90 DEGREE BARBED | 3 | NS18002753 |
| KIT, REPAIR SEAT CUSHION FRONT | 1 | 2595024C91 |
| STUD, TRACK | 4 | 2502303C1 |
CROSS REFERENCES
- NATL ST &50087.30A
- NATL ST &50087.30A
- NATL ST &50087.30AO03
- NATL ST &50087.30AO03
- NATL ST 50087.30A003
- NATL ST 50087.30A003
- NATL ST 5008730A003
- NATL ST 5008730A003
- UPS 3472810
- UPS 3472810
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
