3514855C92
SEAT 2295H-20 GRAY VN/VN
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$829.95
$995.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, OCCUPANT DR /PASS MED BACK GRAY VIN/VIN AIR /SUSPEND
Weight
89.9998 lbs

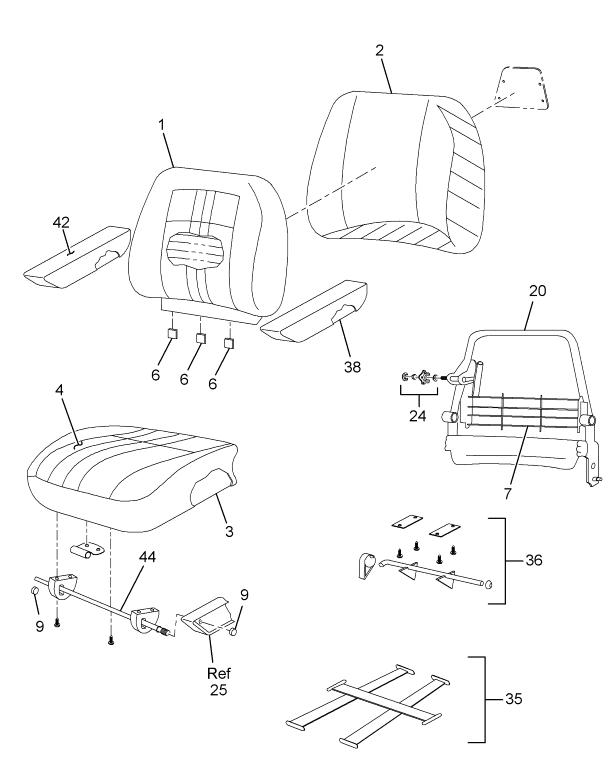

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, MID BACK SEAT CUSHION SEAT BACK GRAY VINYL | 1 | 2502254C1 |
| BOLT, ROUND HEAD 5/16" X 3/4" UNC | 4 | 2502266C1 |
| SUPPORT, SEAT | 1 | 1699844C1 |
| ARM ASSEMBLY UPPER W/BUSHINGS | 1 | 2500135C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| ARM LOWER W/BUSHINGS | 1 | 2502060C91 |
| PEDESTAL, SEAT COMPLETE BASE AND UPRIGHT | 1 | 2503846C91 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2505381C91 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502268C91 |
| BUMPER, STOP SEAT DOWN RUBBER | 1 | 1698198C1 |
| BOLT, SELF TAPPING | 1 | 2503786C1 |
| STRAP, ULTRAFLEX SAFETY W/HOOKS | 3 | 2502272C1 |
| ARMREST GRAY LEFT HAND | 1 | 2033154C1 |
| COVER, SEAT CUSHION SEAT BOTTOM GRAY VINYL | 1 | 2502260C1 |
| ARMREST GRAY VINYL RIGHT HAND | 1 | 2015186C1 |
| VALVE AIR LEVEL SEAT W/AIR LMBR | 1 | 1697502C91 |
| CLIP, CUSHION COVERING | 3 | 2502264C1 |
| SUPPORT, FLEX-O-LATOR | 1 | 1660400C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501354C1 |
| CAP, CUSHION ADJUSTER ROD | 2 | 2502265C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
