3897141C92
PANEL FR SKRT ASSEMBLY MIC R DAYCAB
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,049.95
$1,259.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL FR SKRT ASSEMBLY MIC R DAYCAB

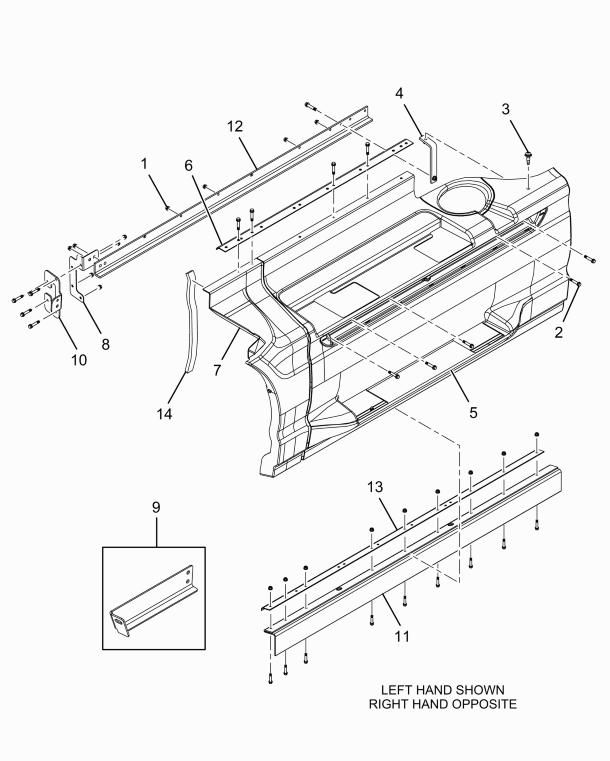

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, FLANGE M8 | 26 | 3544379C1 |
| SUPPORT, PANEL FRONT EXTENSION LOWER ,L | 1 | 3939324C1 |
| PANEL, DAYCAB LOWER TRIM, R | 1 | 3944995C1 |
| SUPPORT, CHASSIS SKIRT RIGHT HAND D/C 125BBC | 1 | 3945004C1 |
| SUPPORT, DAYCAB LOWER TRIM STRIP, R | 1 | 3953700C1 |
| SEAL, CHASSIS SKIRT FRONT | 1 | 3937469C1 |
| BOLT, FLANGE HEAD M8 X 30 | 27 | 3561048C1 |
| BOLT, SEMS ALL TORX M8 X 1.25 X 30 MM | 1 | 3588153C1 |
| SUPPORT DAY CAB CHASSIS SKIRT | 1 | 3840967C1 |
| PANEL, FR SKIRT PTD, L, DAYCAB | 1 | 3897025C2 |
| SUPPORT, DAYCAB UPPER TRIM R | 1 | 3939326C1 |
| PANEL, FR EXTENSION, MIC, R | 1 | 3897021C4 |
| SUPPORT, DAYCAB FRONT SKIRT TO FRONT EXTENSION R | 1 | 3953706C1 |
| SUPPORT PANEL FRONT EXTENSION OUTER 125,R | 1 | 3915377C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
