3897141C91
PANEL, FR SKRT ASM, MIC, R, DA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$889.95
$1,067.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL

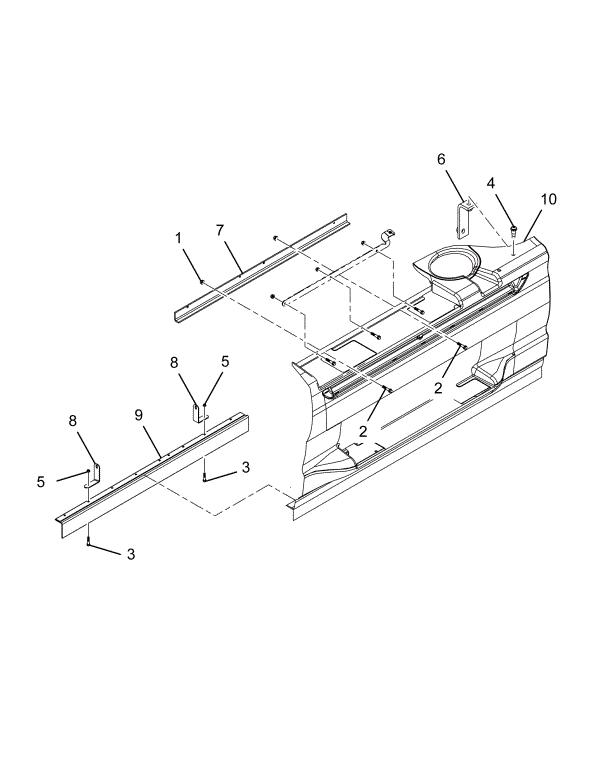

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, FLANGE M8 | 10 | 3544379C1 |
| PANEL PANEL, FRAME SKIRT ASSEMBLY, MIC, R, DAY CAB | 1 | 3897025C1 |
| BOLT, SEMS ALL STYLE 2 W/PATCH M8 X 1.25-30 MM | 6 | 3555605C1 |
| BOLT, FLANGE HEAD M8 X 30 | 9 | 3561048C1 |
| BOLT, SEMS ALL TORX M8 X 1.25 X 30 MM | 1 | 3588153C1 |
| NUT WELD LOCK M8 X 1.25 PILOT | 2 | 3603860C1 |
| SUPPORT DAY CAB CHASSIS SKIRT | 2 | 3840967C1 |
| SUPPORT CHASSIS SKIRT RIGHT HAND D/C | 1 | 3844783C1 |
| SUPPORT SUPPORT AT BTM, FRONT SKRT, LH | 1 | 3895346C1 |
| SUPPORT SUPPORT AT BTM, FRONT SKRT, RIGHT HAND | 1 | 3895347C1 |
| PANEL MLDG AT BTM, FRONT ,122" RIGHT HAND | 1 | 3896415C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
