3765598C94
PANEL DOOR ASSEMBLY, LEVEL 2, ALL POWER, LEFT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$559.95
$671.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL DOOR ASSEMBLY, LEVEL 2, ALL POWER, LEFT HAND

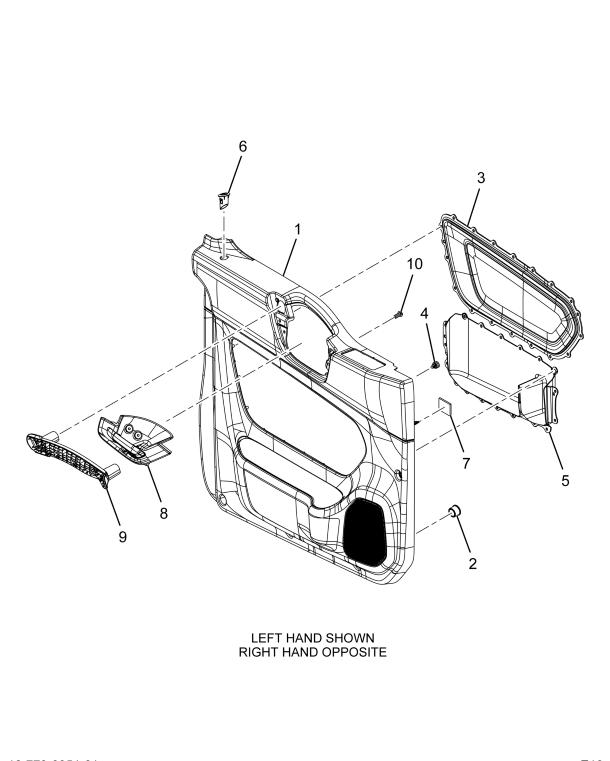

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, FULL, DOOR TRIM, ALL POWER, W/LAMP, LEFT HAND | 1 | 3765616C2 |
| SCREW, M5 X 14MM | 6 | 3768429C1 |
| BUSHING, COMPRESSION LIMITER | 6 | 3765643C1 |
| PANEL, LEVEL 2 BOLSTER ASSEMBLY, LEFT HAND | 1 | 3765637C1 |
| FASTENER, DOOR TRIM RETAINER | 6 | 3805943C1 |
| PANEL, MAP POCKET CLOSEOUT, LEFT HAND | 1 | 6126373C2 |
| PANEL, LOCK ROD GROMMET, LEFT HAND | 1 | 6126375C2 |
| SEAL PVC FOAM, 1/8"THK X 1" WIDE X 1 FT LG/BLACK | 2 | 453761C1 |
| HANDLE,LH DOOR INSIDE, CHROME, | 1 | 4053965C91 |
| HANDLE, GRAB, BASE, LEFT HAND | 1 | 6126377C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
