3727499C95
PANEL FRONT SKIRT ASSEMBLY MIC RIGHT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,549.95
$1,859.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL FRONT SKIRT ASSEMBLY MIC RIGHT HAND
Weight
60.13 lbs

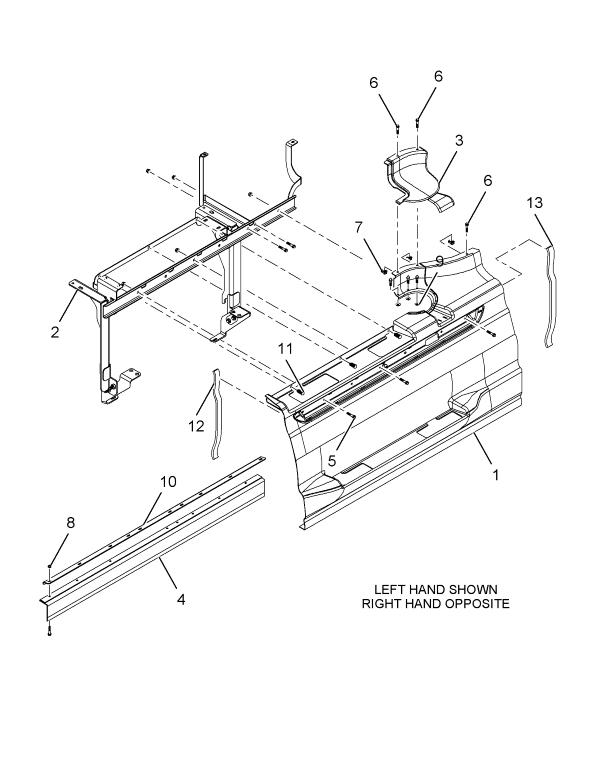

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL FRONT CHASSIS SKIRT MIC RIGHT HAND | 1 | 3727419C4 |
| PANEL FRONT CHASSIS SKIRT MIC RIGHT HAND | 1 | 3727419C5 |
| SUPPORT LOWER STRIP FRONT CHASSIS SKIRT | 1 | 3919749C3 |
| SUPPORT LOWER STRIP FRONT CHASSIS SKIRT | 1 | 3919749C1 |
| FASTENER, CHRISTMAS TREE 29.2 X 10MM | 3 | 3548696C3 |
| SEAL, CHASSIS SKIRT FRONT | 1 | 3937469C1 |
| SEAL, CHASSIS SKIRT REAR | 1 | 3939432C1 |
| SUPPORT FRONT ASSEMBLY SKIRT RIGHT HAND | 1 | 3904002C94 |
| PANEL ASSEMBLY FUEL HOLE CAP MIC RIGHT HAND | 1 | 3910406C92 |
| PANEL MLDG AT BTM FRONT 122 | 1 | 3896415C2 |
| BOLT, HEXAGON FLANGE HEAVY M8 X 25 | 5 | 40316R1 |
| BOLT, FLANGE HEAD M8 X 30 | 12 | 3561048C1 |
| NUT, SPECIAL LONG "U" NUT M8 X 1.25 | 2 | 3541323C1 |
| NUT, FLANGE M8 | 10 | 3544379C1 |
| NUT, SPEED 1/4"-1/2" | 8 | 3517281C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
