3727499C94
PANEL FRONT SKIRT ASSEMBLY MIC RIGHT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$719.95
$863.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL FRONT SKIRT ASSEMBLY MIC RIGHT HAND

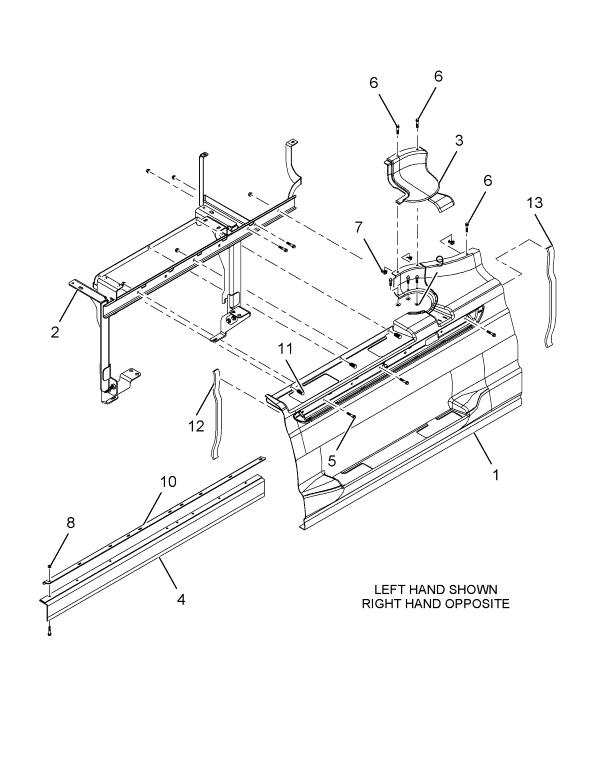

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL FRONT CHASSIS SKIRT MIC RIGHT HAND | 1 | 3727419C4 |
| SUPPORT LOWER STRIP FRONT CHASSIS SKIRT | 1 | 3919749C3 |
| SUPPORT LOWER STRIP FRONT CHASSIS SKIRT | 1 | 3919749C1 |
| FASTENER, CHRISTMAS TREE 29.2 X 10MM | 3 | 3548696C3 |
| SEAL, CHASSIS SKIRT FRONT | 1 | 3937469C1 |
| SEAL, CHASSIS SKIRT REAR | 1 | 3939432C1 |
| SUPPORT FRONT ASSEMBLY SKIRT RIGHT HAND | 1 | 3904002C93 |
| PANEL ASSEMBLY FUEL HOLE CAP MIC RIGHT HAND | 1 | 3910406C92 |
| PANEL MLDG AT BTM FRONT 122 | 1 | 3896415C2 |
| BOLT, HEXAGON FLANGE HEAVY M8 X 25 | 5 | 40316R1 |
| BOLT, FLANGE HEAD M8 X 30 | 12 | 3561048C1 |
| NUT, SPECIAL LONG "U" NUT M8 X 1.25 | 2 | 3541323C1 |
| NUT, FLANGE M8 | 10 | 3544379C1 |
| NUT, SPEED 1/4"-1/2" | 8 | 3517281C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
