3662414C93
PANEL ASSEMBLY UPPER RIGHT HAND EAGLE ELECTRICAL WIN/LOCK W/CB RADIO RADIO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,699.95
$2,039.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY UPPER RIGHT HAND EAGLE ELECTRICAL WIN/LOCK W/CB RADIO RADIO
Package Dimensions
36.0 x 42.0 x 6.0 in
Weight
30 lbs

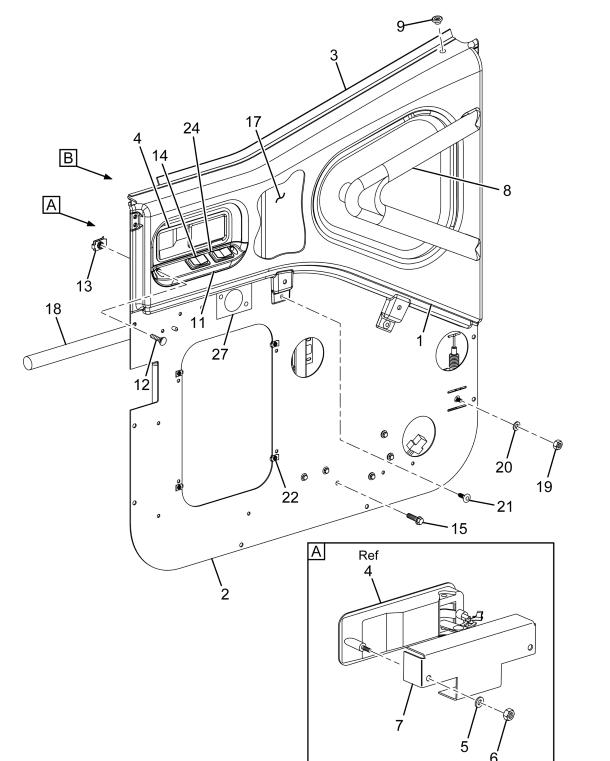

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, UPPER RIGHT DOOR TRIM TAN POWER WINDOW | 1 | 3578325C1 |
| REGULATOR, DOOR GLASS ELECTRIC RIGHT HAND | 1 | 3662378C91 |
| , DOOR SWITCH FOR 2 SWITCHES | 1 | 3578182C1 |
| SCREW, SPECIAL TAPPING | 2 | 501725C1 |
| NUT, SPEED #8-18 | 2 | 3504698C1 |
| SWITCH, WINDOW REGULATOR RIGHT FOR RIGHT | 1 | 3536495C1 |
| SCREW, HEXAGON HEAD 1/4-28 UNF X .50 | 13 | 443210001 |
| SCREW, HEXAGON HEAD 1/4-28 UNF X .50 | 13 | 3663771C1 |
| MOTOR, CONTROL DOOR LOCK | 1 | 3662381C1 |
| INSULATOR, DOOR PANEL UPPER RIGHT | 1 | 3525447C1 |
| HARNESS, ELECTRICAL BODY ACCESSORY DOOR POWER WINDOW AND LOCK RIGHT | 1 | 3536498C96 |
| NUT, HEXAGON FLANGE CLASS 10 M6 | 1 | 31109R1 |
| PANEL ASSEMBLY, DOOR INNER RIGHT | 1 | 3519433C4 |
| WASHER, LOCK 6MM | 1 | 933833R1 |
| FASTENER, PINETREE NATURAL FLAT DOME | 2 | 3525973C1 |
| NUT SPRING U-BOLT | 4 | 445435 |
| ROD, DOOR CONTROL RIGHT | 1 | 3539686C1 |
| SWITCH DOOR LOCK /UNLOCK | 1 | 3536496C1 |
| BAFFLE DOOR INSULATION W/ELECTRIC LOCK | 1 | 3555729C1 |
| NUT, PUSH ON SPEED NUT | 1 | 4025019R1 |
| TAPE, TRIM 2 INCHES WIDE, 3179 * POLYETHYLENE | 1 | 3599933C1 |
| LOOM, CABLE | 18 | 2643669R1 |
| SEAL, DOOR GLASS INNER RIGHT | 1 | 3513549C1 |
| STRAP, ELECTRONIC CABLE, POWER WINDOW | 3 | 4025021R1 |
| HANDLE, DOOR INSIDE REMOTE RIGHT | 1 | 3518517C91 |
| WASHER, LOCK # 10 NOM STEEL /ZNC | 2 | 120217 |
| NUT #10 UNC | 2 | 120361 |
| SUPPORT HANDLE DOOR* | 1 | 498720C1 |
| HANDLE, GRAB DOOR RIGHT | 1 | 3518424C1 |
| FERRULE, LOCK BUTTON | 1 | 508332C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
