3575495C95

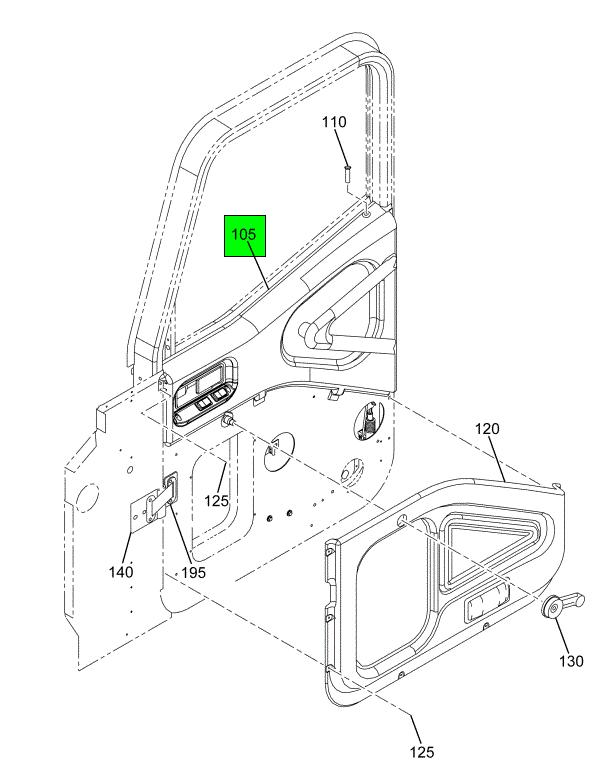

PANEL UPPER RIGHT HAND W/WINDOW LOCK
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$829.95
$995.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL UPPER RIGHT HAND W/WINDOW LOCK
Weight
25.0008 lbs

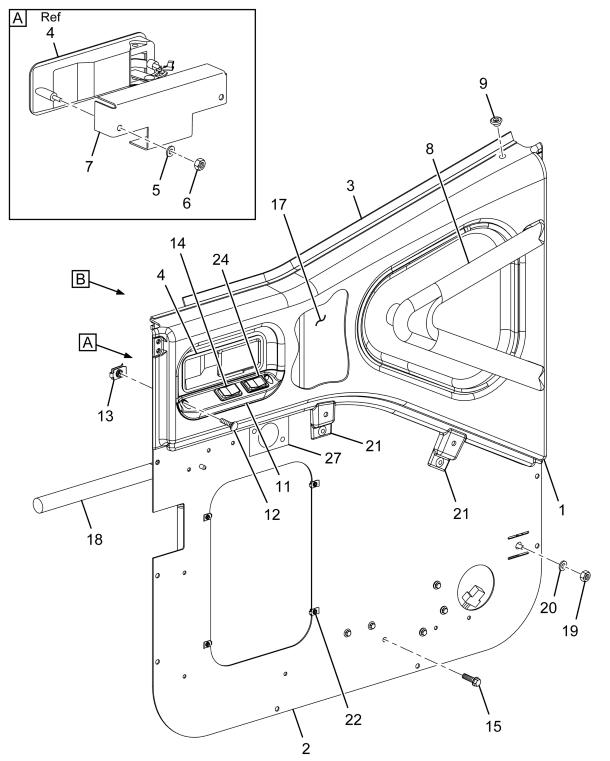

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, UPPER RIGHT DOOR TRIM TAN POWER WINDOW | 1 | 3578325C1 |
| REGULATOR, POWER DOOR WINDOW RIGHT HAND | 1 | 3515113C92 |
| , DOOR SWITCH FOR 2 SWITCHES | 1 | 3578182C1 |
| SCREW, SPECIAL TAPPING | 2 | 501725C1 |
| NUT, SPEED #8-18 | 2 | 3504698C1 |
| SWITCH, WINDOW REGULATOR RIGHT FOR RIGHT | 1 | 3536495C1 |
| SCREW, MACHINE HEXAGON HEAD 1/4"-28 UNF X 3/4" | 13 | 3521935C1 |
| MOTOR, CONTROL DOOR LOCK | 1 | 3609942C1 |
| INSULATOR, DOOR PANEL UPPER RIGHT | 1 | 3525447C1 |
| HARNESS, ELECTRICAL BODY ACCESSORY DOOR POWER WINDOW AND LOCK RIGHT | 1 | 3536498C96 |
| NUT, HEXAGON FLANGE CLASS 10 M6 | 1 | 31109R1 |
| PANEL, RIGHT INNER DOOR PANEL INNER RIGHT | 1 | 3519433C3 |
| WASHER, LOCK 6MM | 1 | 933833R1 |
| FASTENER, PINETREE NATURAL FLAT DOME | 2 | 3525973C1 |
| NUT SPRING U-BOLT | 4 | 445435 |
| ROD, DOOR CONTROL RIGHT | 1 | 3539686C1 |
| SWITCH DOOR LOCK /UNLOCK | 1 | 3536496C1 |
| BAFFLE DOOR INSULATION W/ELECTRIC LOCK | 1 | 3555729C1 |
| TAPE, TRIM 2 INCHES WIDE, 3179 * POLYETHYLENE | 1 | 3599933C1 |
| SEAL, DOOR GLASS INNER RIGHT | 1 | 3513549C1 |
| HANDLE, DOOR INSIDE REMOTE RIGHT | 1 | 3518517C91 |
| WASHER, LOCK # 10 NOM STEEL /ZNC | 2 | 120217 |
| NUT #10 UNC | 2 | 120361 |
| SUPPORT HANDLE DOOR* | 1 | 498720C1 |
| HANDLE, GRAB DOOR RIGHT | 1 | 3518424C1 |
| FERRULE, LOCK BUTTON | 1 | 508332C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
