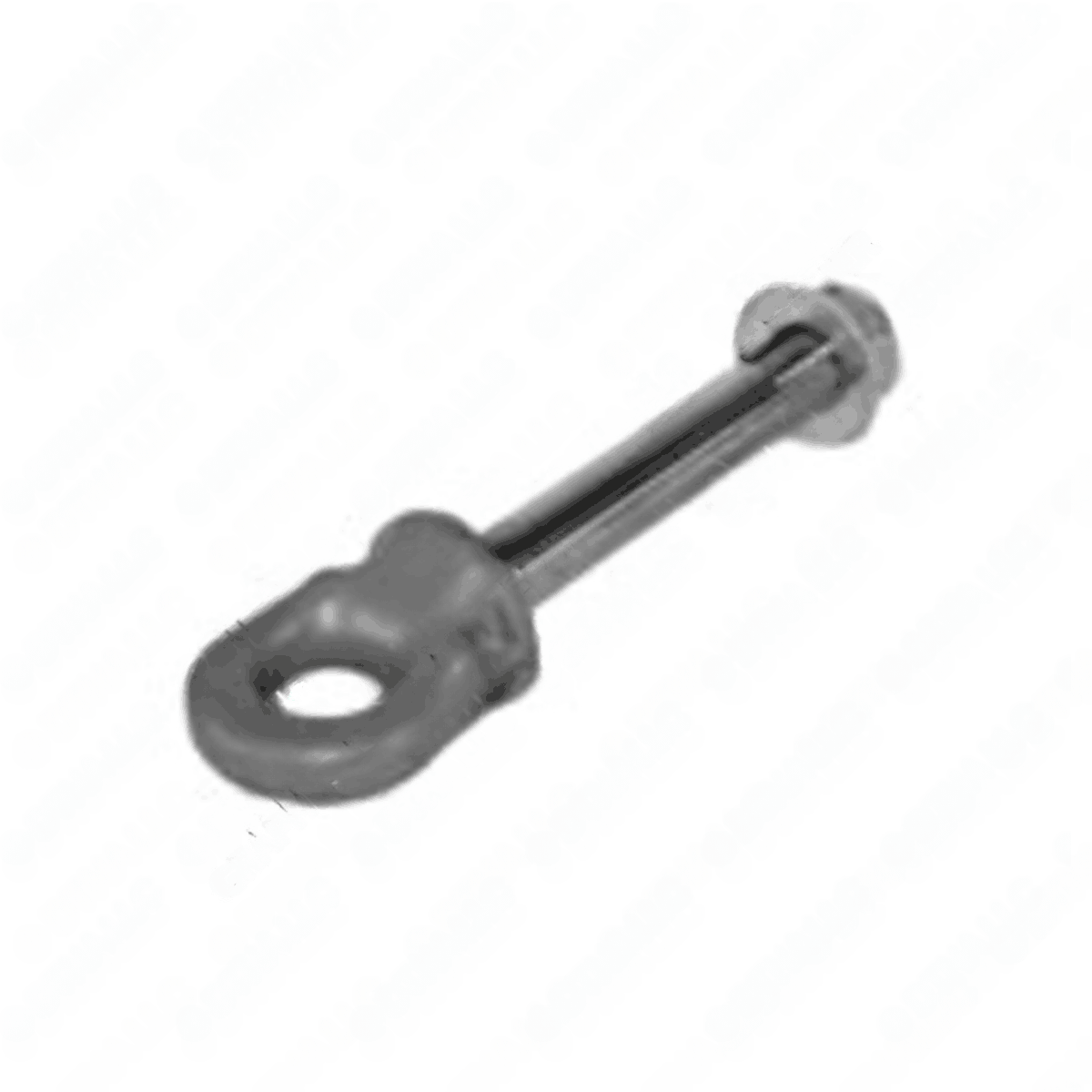

DB-1407-SE-1
Drawbar
SAF-Holland

Designed for demanding on highway operations, this high-capacity hitch interface provides robust articulation and reliable load transfer between tractor and trailer. The swivel bolt-on shank allows the connection to accommodate dynamic articulation across uneven terrain, reducing hitch point binding and distributing vertical and lateral loads across the king pin area. Functionally, it supports a wide vertical load range from 500 to 16000 pounds and accommodates trailer weights up to 120000 pounds, making it suitable for fleets with varied trailer configurations. Its footprint measures roughly 5.13 inches in width by 19.63 inches in length with a 0.38 inch chamfer to ease insertion and reduce wear. The swivel design helps adaptability during cornering and braking, contributing to longer service life for mating components involved in hitch articulation. This assembly ships with essential mounting hardware – a washer, a nut, and a retaining ring – enabling quick field installation and reliable retention in service. Within the Coupling Products family, it aligns with aggressive over the road workloads and is compatible with standard bolt-on trailer hookups. VMRS code 059-004-002 identifies the system tasks related to the coupling interface and load path. Category context: 42758. Typical applications include fleets operating long-haul routes with varying load profiles where consistent hitch alignment is critical.
