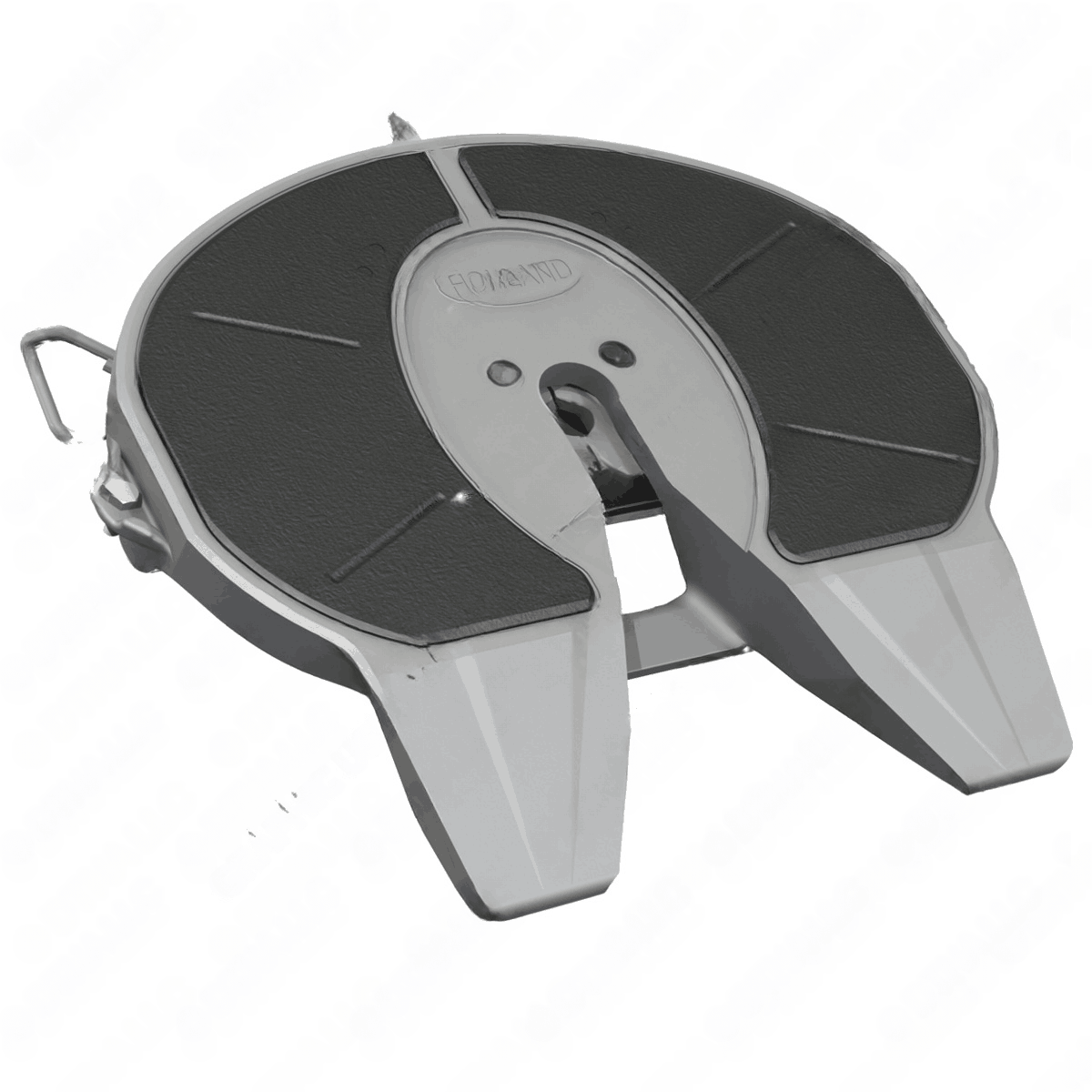

FW31J736XL80
HLDFW31, OB ILS, 36-Inch, 7.12-Inch, XL80
SAF-Holland

Outboard mounted, left-hand release ILS system with a 36 inch travel and a large XL80 length. The 39.50 inch width and 56.25 inch overall length reflect a robust slider that accommodates trailer position variance over long haul routes and heavy loads. The mounting height of 7.1 inches places the king pin in a conventional alignment with standard tractors, while the outboard slide mounting configuration provides straightforward access for coupling in tight spaces. The 36 inch slider travel affords substantial reach for misaligned or deferred trailer couplings encountered on uneven terrain or dock operations. With a maximum load capacity of up to 150000 lbs and a vertical load rating of 55000 lbs, this design is built for high duty cycles and extended service life. VMRS code 059-001-135 classifies it within the standard heavy duty hitch family, and cross references JOS 37UWA A7PX36 plus FON AACLWB725036 offer interchange options for existing fleets. The category 42518 context highlights its compatibility with other sliding and locking assemblies that enable safe, efficient trailer hookup in diverse operating conditions. Regular checks should include ensuring outboard slider guides remain clean and lubricated as recommended by the OEM, plus nut torque verifying mounting hardware integrity.
