FW31J712XL00

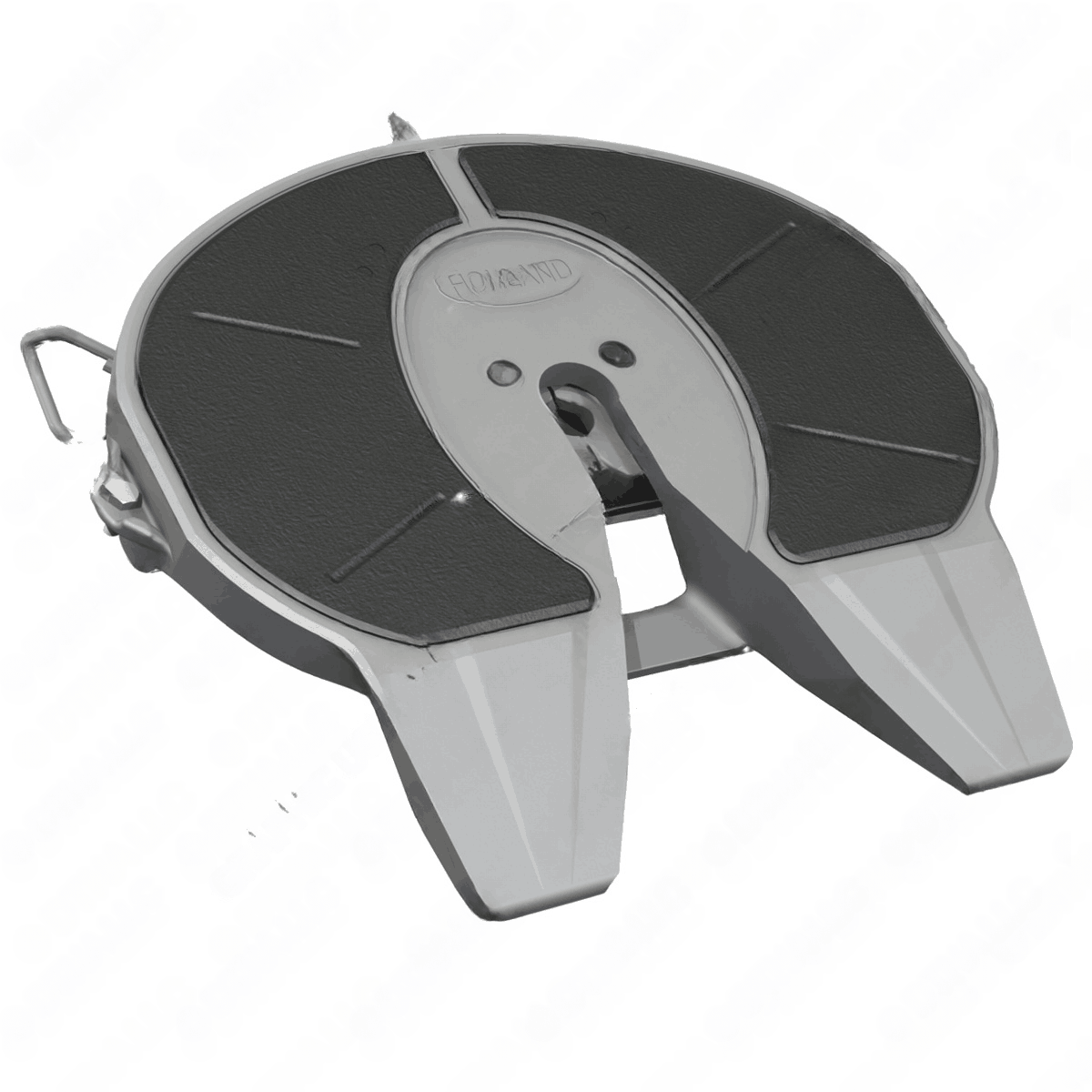

Fifth Wheel Assembly - ILS, 12 Inch Slider, 7.10 Inch, Left Hand
SAF-Holland

Fifth wheel HLD ILS 12 inch slider, 7.10 height, left hand. This integrated sliding hitch is designed for standard duty cycles with a compact footprint. The 39.50 inch width and 35 inch length yield a balanced profile for tractors with narrower frame rails, while the 12 inch travel offers extended reach to align with trailers on uneven surfaces or ground slopes. The left hand release provides straightforward operation; the inboard slider configuration supports smooth engagement and stable articulation. With a maximum load capacity up to 150000 lbs and vertical load up to 55000 lbs, it is built to support heavy payloads in long haul and regional operations. The VMRS code 059-001-135 anchors it within the main category for slider systems, and the cross references JOS 37UWL A7PX12 provide a point of interchange with other fleet components. The category context 42518 ties this device to a larger ecosystem of slider assemblies and hitching hardware, enabling efficient maintenance, alignment checks, and periodic lubrication as recommended by the OEM.
