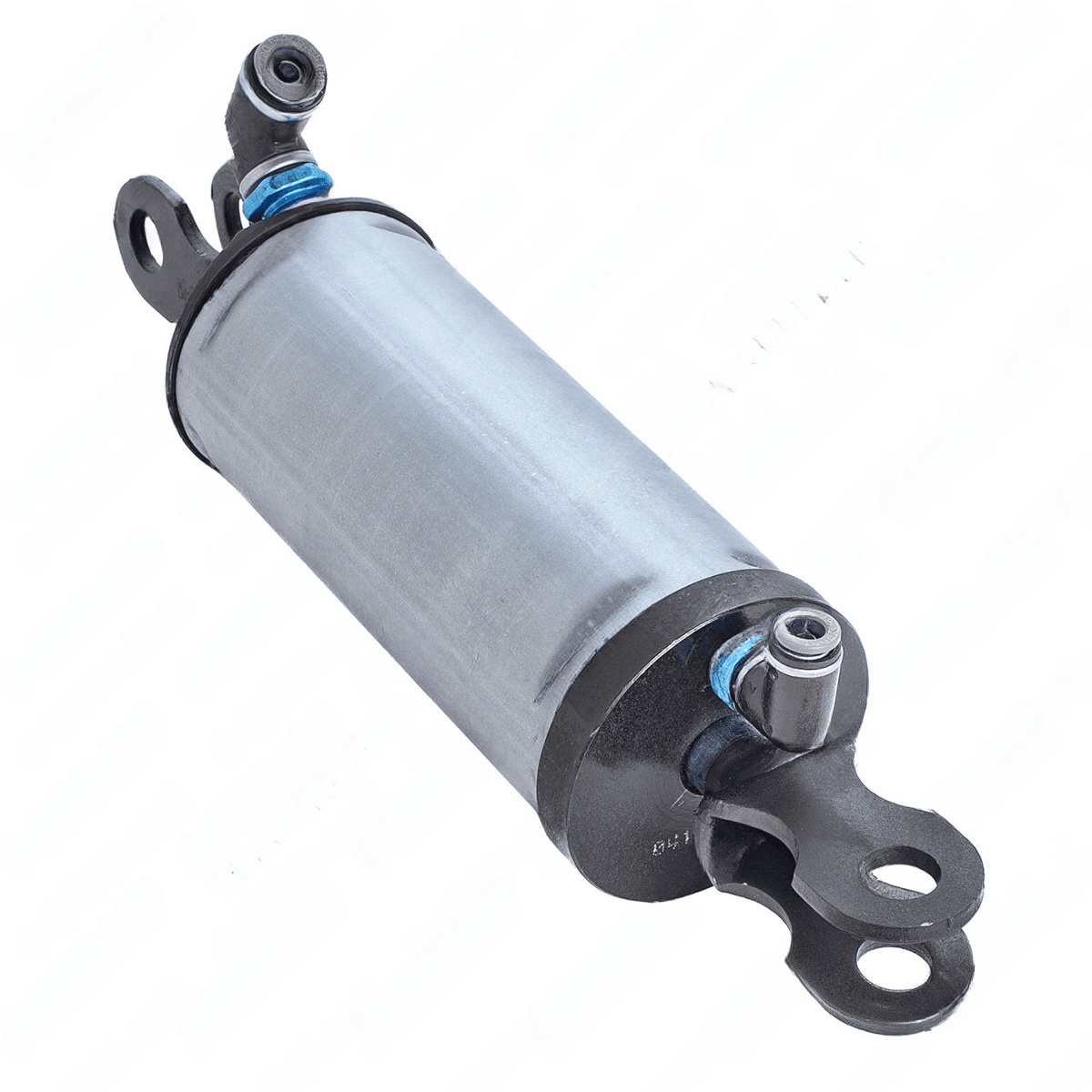

XA-2524-R-4-3
Self-Aligning Air Cylinder
SAF-Holland

A robust self aligning actuator designed for direct integration into heavy duty wheel end and axle assemblies where compact form and predictable stroke are essential. The extended length of 14.10 in with a retracted length of 10.25 in defines a useful reach for actuating linked mechanisms while preserving mounting space. As part of the SAF Holland product family, this component aligns with standardized mounting interfaces and service procedures, helping maintain consistent performance across vehicle configurations. The self aligning geometry accommodates minor angular discrepancies between the actuator and its mating parts, reducing stress concentrations on the piston seals and mounting hardware. In service, it supports reliable actuation of auxiliary systems linked to wheel end functions, contributing to safer operation, easier maintenance, and longer service life for vehicles subject to frequent start stop cycles and variable loads. VMRS is provided to facilitate correct cataloging, ordering, and cross referencing within fleet maintenance and repair operations, and category 42517 confirms its role within air driven actuation subsystems.
