DESCRIPTION
The Brake Drum 16.5 x 7.00 is a high-strength component designed to provide reliable braking performance for your Kenworth truck. Made from lightweight high-strength gray iron, this OEM brake drum features a lightweight design without sacrificing durability, ensuring effective heat dissipation and long service life. Its precise dimensions, including an overall diameter of 18.75 inches and a bolt hole pattern of 10 holes, guarantee proper fitment on disc wheel assemblies. Ideal for heavy-duty applications, this brake drum helps maintain safe stopping distances and vehicle control. Source One Parts Center offers genuine OEM parts, ensuring your Kenworth truck maintains optimal safety and performance on every route.

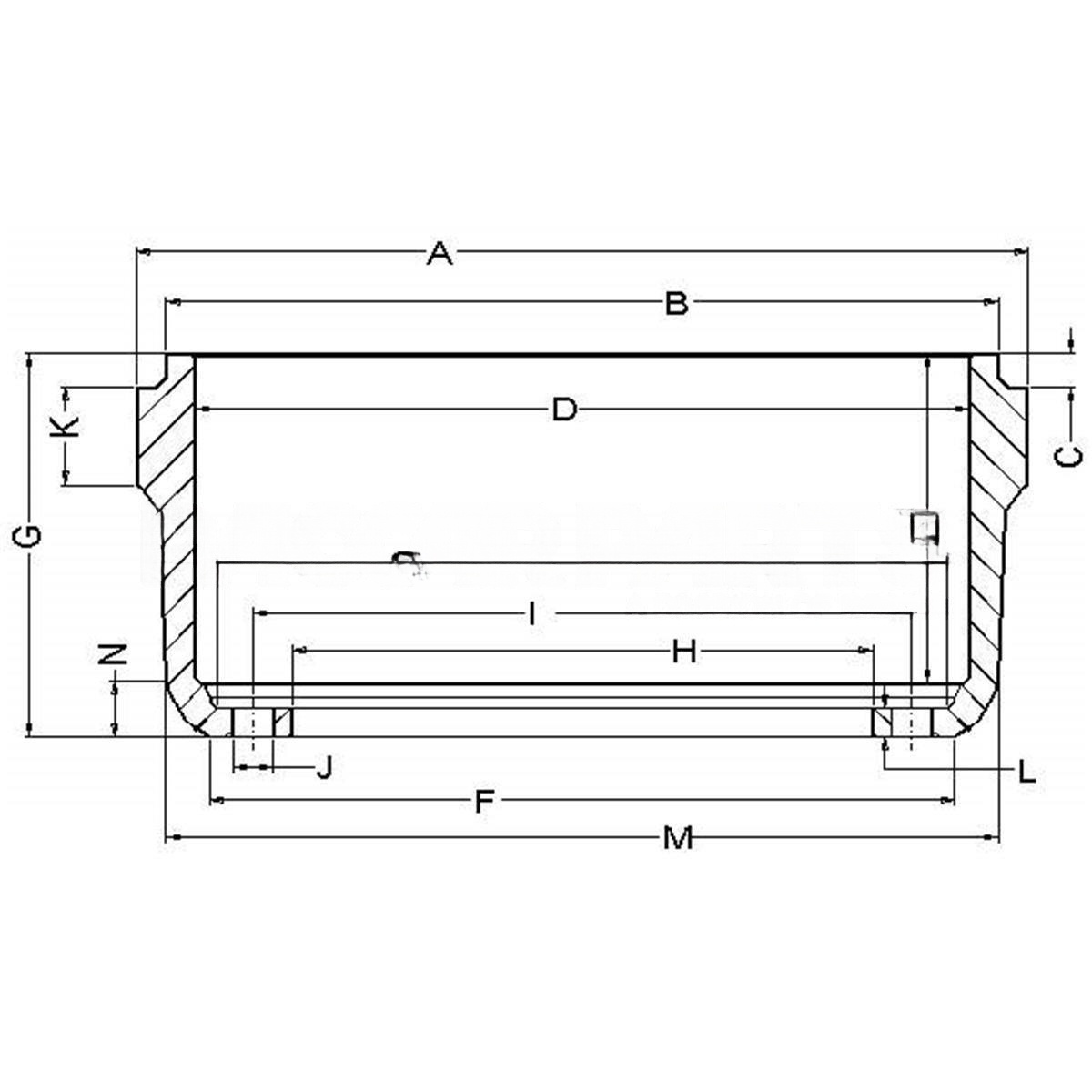

SPECIFICATIONS
L - Mounting Flange Thickness
0.5
C - Dust Shield Recess Depth
0.64
VMRS Code
013-017-006
Bolt Hole Size
1
K - Squealer Band Width
1.96
J - Number of Bolt Holes
10
G - Overall Depth
10.53
I - Bolt Circle Diameter
11.25
O - Inside Finished Diameter
13.14
F - Mounting Flange Diameter
13.38
D - Brake Surface Diameter
16.5
Brake Size
16.50x7.00
Maximum Wear Diameter
16.62
M - Outside Sidewall Diameter
17.46
B - Dust Shield Recess Diameter
17.5
A - Overall Diameter
18.75
N - Sidewall Offset
2.64
Manufacturer Part Number
4000X
OEM Part Number
4000X-053
E - Brake Surface Width
7.6
H - Pilot Diameter
8.78
Finished Weight
99.5
Drum Type
BEA
Wheel Type
Disc
Special Information
Lightweight high strength gray iron version of 3600AX
Drum Mount
Outboard
