DESCRIPTION
The 15.00 x 4.00 Brake Drum is a high-quality, durable component designed for outboard mounting on your Kenworth truck. Crafted with precision steel, it ensures reliable braking performance and longevity. Featuring a TruPilot design, this brake drum offers consistent wear and optimal heat dissipation, enhancing safety and efficiency. Its robust construction and exact fitment make it ideal for heavy-duty applications. Trust Source One Parts Center for genuine OEM parts, providing top-tier quality, competitive pricing, and expert support to keep your brakes functioning flawlessly.

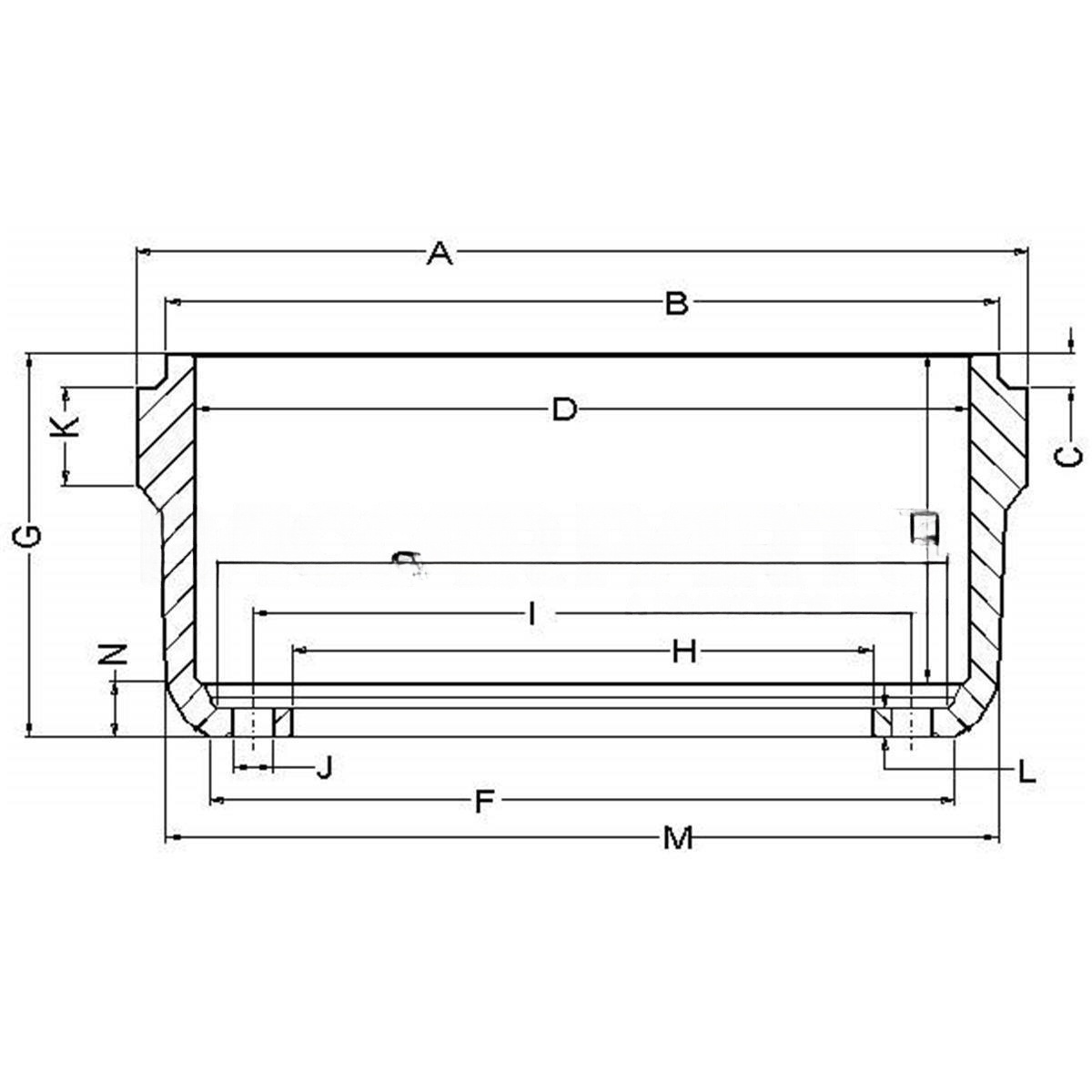

SPECIFICATIONS
L - Mounting Flange Thickness
0.5
C - Dust Shield Recess Depth
0.8
VMRS Code
013-017-006
Bolt Hole Size
1.25
K - Squealer Band Width
1.58
J - Number of Bolt Holes
10
I - Bolt Circle Diameter
11.25
O - Inside Finished Diameter
13.2
F - Mounting Flange Diameter
13.38
D - Brake Surface Diameter
15
Brake Size
15.00x4.00
Maximum Wear Diameter
15.12
B - Dust Shield Recess Diameter
16
M - Outside Sidewall Diameter
16.01
A - Overall Diameter
17.32
Manufacturer Part Number
3800X
OEM Part Number
3800X-053
N - Sidewall Offset
4.3
E - Brake Surface Width
4.66
Finished Weight
79
H - Pilot Diameter
8.78
G - Overall Depth
9.18
Drum Type
BEA
Wheel Type
Disc
Drum Mount
Outboard
Special Information
TruPilot brake drum, has 8.78 & 8.66 pilot diameters. Version of 3726X.
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
