3753X
15-Inch Outboard Brake Drum
Kenworth®
UNAVAILABLE
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The 15-Inch Outboard Brake Drum is a critical component for your Kenworth truck's braking system, designed to deliver reliable stopping power and durability. Engineered with precision, this TruPilot brake drum features an 8.78-inch pilot diameter and a low profile design, ensuring optimal fit and performance. Made from high-quality materials, it withstands high temperatures and heavy loads, providing consistent braking performance under demanding conditions. Its robust construction minimizes wear and extends service life, contributing to safer driving and reduced maintenance costs. Whether replacing worn drums or upgrading your brake system, sourcing genuine OEM parts like this from Source One Parts Center guarantees compatibility and quality. Trust us for all your Kenworth truck parts needs, supported by expert advice and fast delivery to keep your fleet operating smoothly.

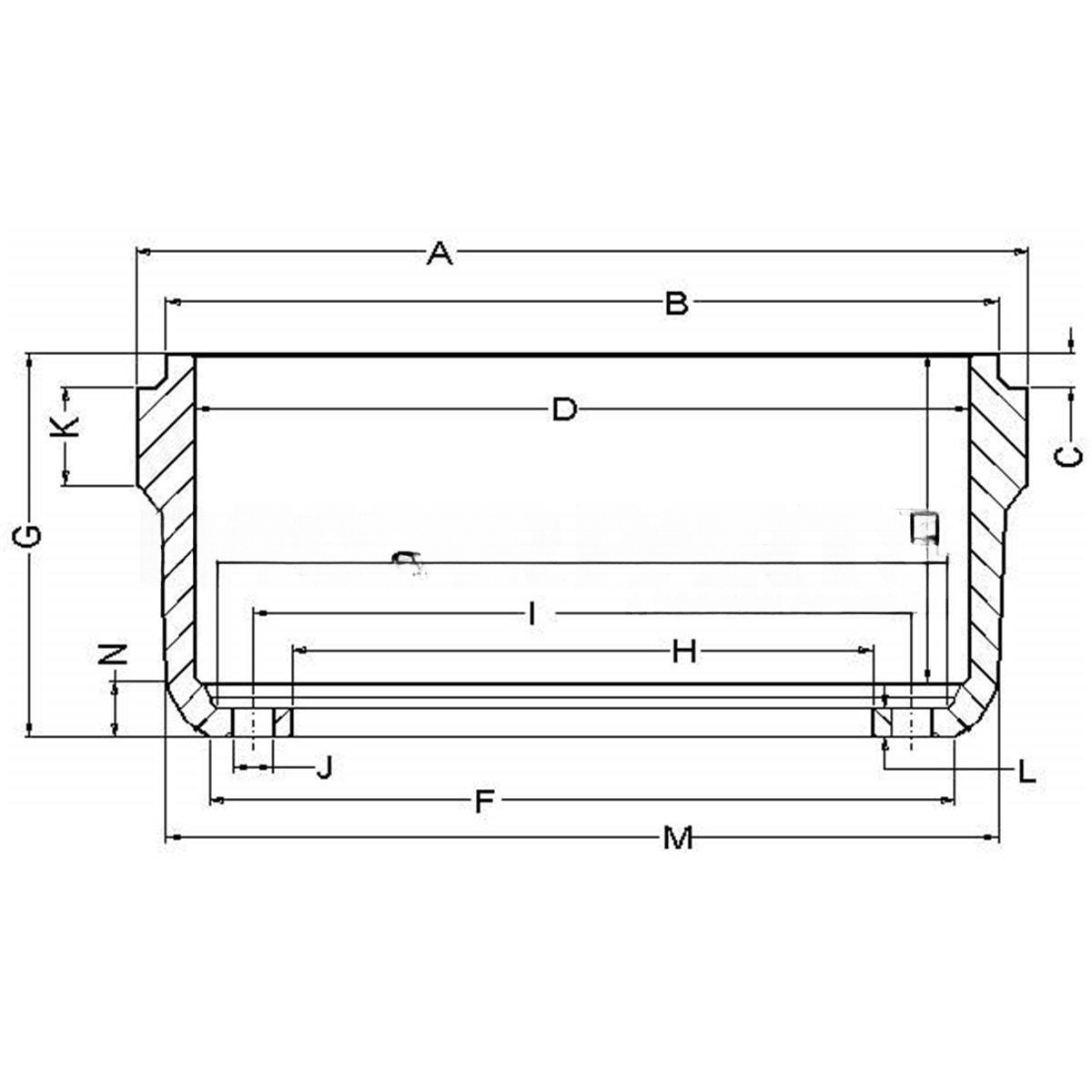

SPECIFICATIONS
L - Mounting Flange Thickness
0.5
VMRS Code
013-017-006
Bolt Hole Size
1
K - Squealer Band Width
1.18
J - Number of Bolt Holes
10
G - Overall Depth
10.28
I - Bolt Circle Diameter
11.25
O - Inside Finished Diameter
13
F - Mounting Flange Diameter
13.3
D - Brake Surface Diameter
15
Brake Size
15.00x6.00
Maximum Wear Diameter
15.12
M - Outside Sidewall Diameter
16.1
A - Overall Diameter
17.4
N - Sidewall Offset
3.32
Manufacturer Part Number
3753X
OEM Part Number
3753X-053
E - Brake Surface Width
7.14
H - Pilot Diameter
8.78
Finished Weight
95
Drum Type
BDC
Wheel Type
Disc
Drum Mount
Outboard
Special Information
TruPilot brake drum, has 8.78 & 8.66 pilot diameters. Low profile brake drum.
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
