DESCRIPTION
The Brake Drum is a critical component of your truck's braking system, providing a surface for brake shoes to press against and slow the vehicle. This OEM brake drum features precise dimensions and high-quality materials to ensure reliable stopping power and durability. Designed for outboard mounting on disc wheels, it fits Kenworth trucks perfectly. Sourcing genuine OEM brake drums from Source One Parts Center guarantees optimal performance and safety, helping you stay compliant with industry standards.

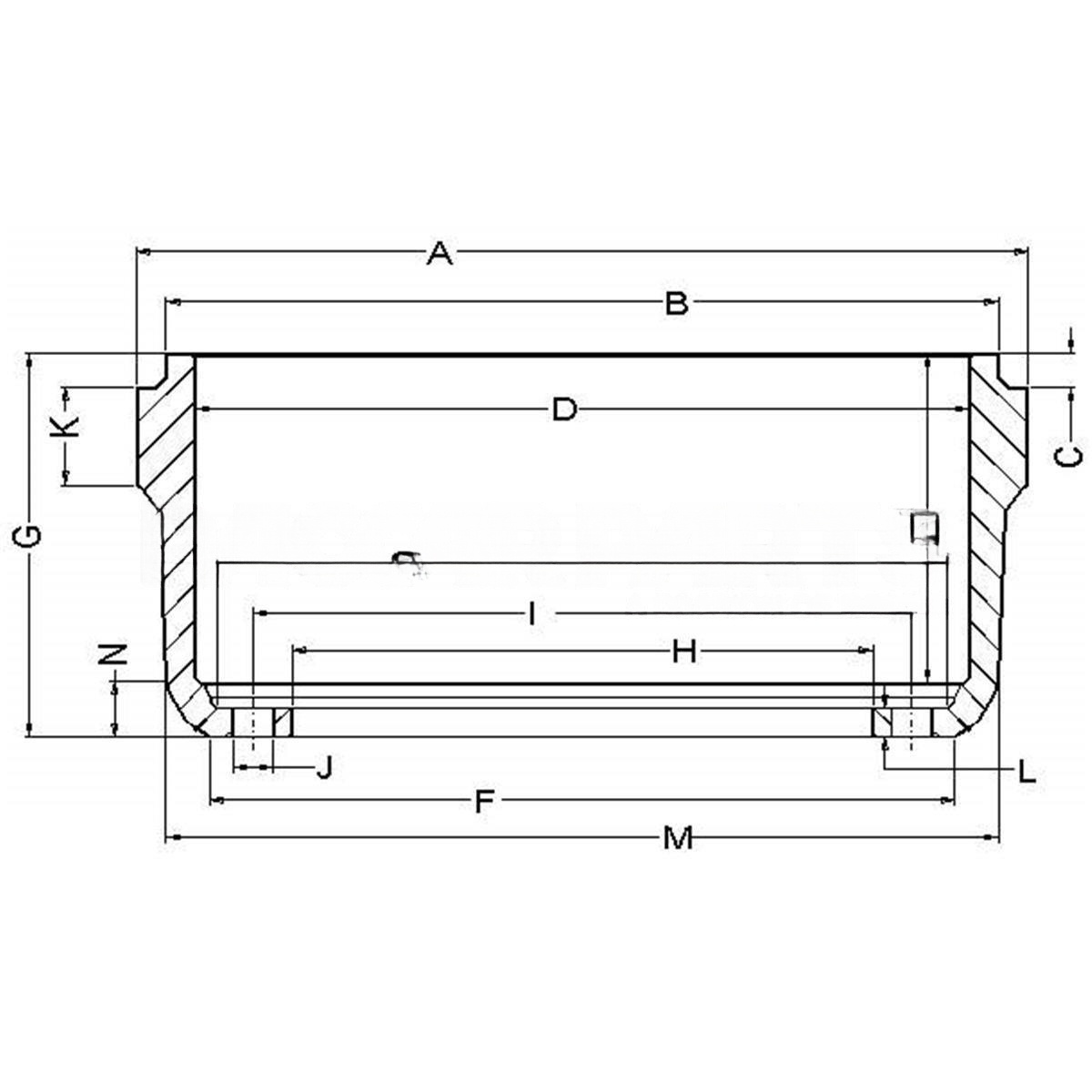

SPECIFICATIONS
L - Mounting Flange Thickness
0.5
C - Dust Shield Recess Depth
0.64
VMRS Code
013-017-006
Bolt Hole Size
1.25
K - Squealer Band Width
1.68
J - Number of Bolt Holes
10
I - Bolt Circle Diameter
11.25
O - Inside Finished Diameter
13.14
F - Mounting Flange Diameter
13.52
D - Brake Surface Diameter
16.5
Brake Size
16.50x5.00
Maximum Wear Diameter
16.62
B - Dust Shield Recess Diameter
17.44
M - Outside Sidewall Diameter
17.6
A - Overall Diameter
18.8
N - Sidewall Offset
3.66
Manufacturer Part Number
3710X
OEM Part Number
3710X-053
E - Brake Surface Width
5.38
H - Pilot Diameter
8.78
G - Overall Depth
9.04
Finished Weight
96
Drum Type
BEA
Wheel Type
Disc
Drum Mount
Outboard
Special Information
TruPilot brake drum, has 8.78 & 8.66 pilot diameters
