3687X
Brake Drum 16.5 x 6 Balanced
Kenworth®
UNAVAILABLE
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Brake Drum 16.5 x 6 Balanced is a high-quality component designed for your Kenworth truck's braking system, providing reliable stopping power and durability. Engineered with precision, this drum features balanced construction to ensure smooth operation and minimal vibration during braking. Made from robust materials, it withstands high heat and stress, extending the lifespan of your brake system. Suitable for outboard mounting and compatible with disc wheels, this genuine OEM brake drum guarantees a perfect fit and optimal performance. Regular replacement with authentic parts like this helps maintain safety standards, reduces wear on brake components, and ensures your truck remains compliant with safety regulations. Trust Source One Parts Center for the best selection of genuine Kenworth brake parts, supporting safe and efficient operation mile after mile.

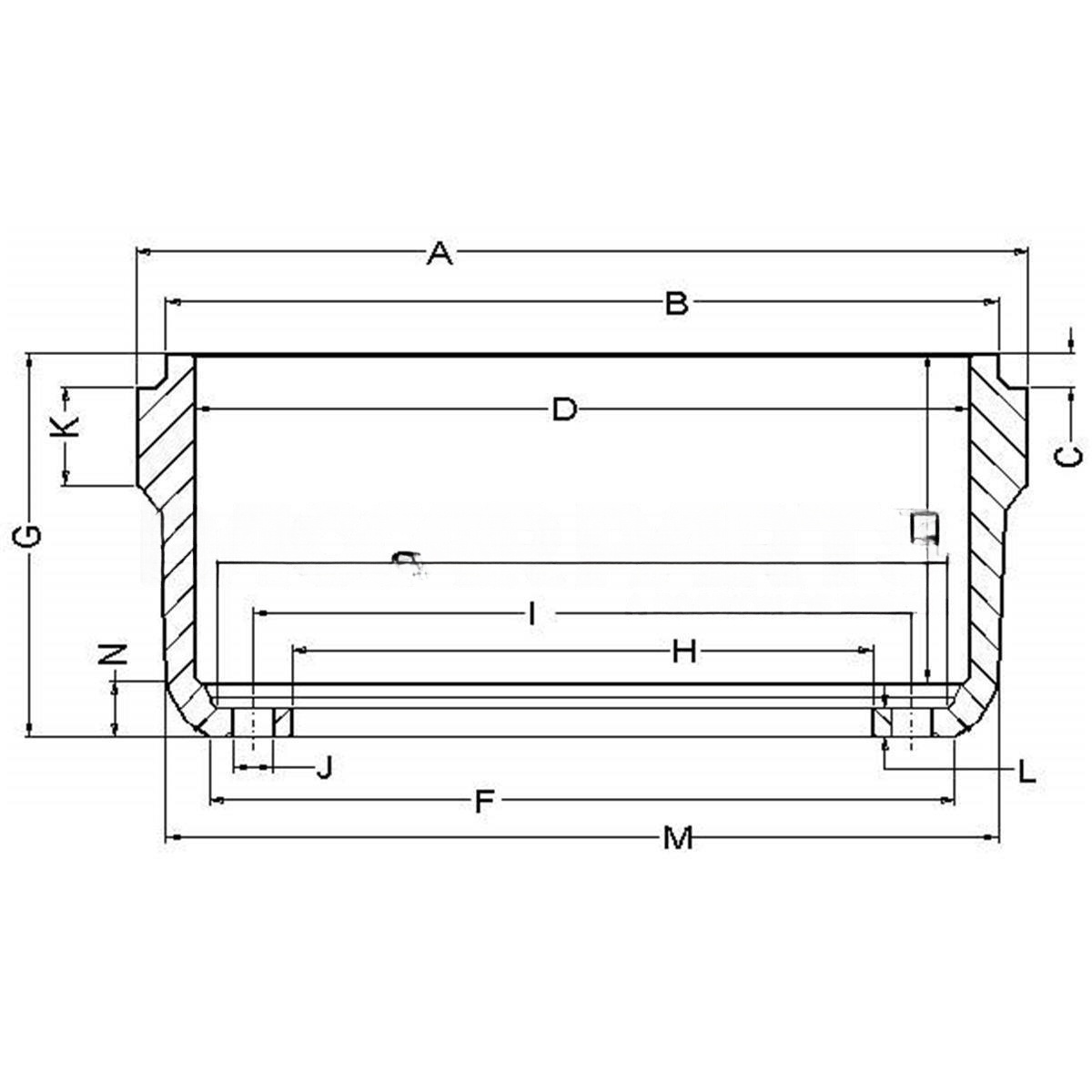

SPECIFICATIONS
L - Mounting Flange Thickness
0.62
C - Dust Shield Recess Depth
0.73
VMRS Code
013-017-006
N - Sidewall Offset
1.14
Bolt Hole Size
1.25
K - Squealer Band Width
1.92
J - Number of Bolt Holes
10
Finished Weight
108
I - Bolt Circle Diameter
11.25
O - Inside Finished Diameter
12.96
F - Mounting Flange Diameter
13.38
M - Outside Sidewall Diameter
14.76
D - Brake Surface Diameter
16.5
Brake Size
16.50x6.00
Maximum Wear Diameter
16.62
B - Dust Shield Recess Diameter
17.62
A - Overall Diameter
18.88
Manufacturer Part Number
3687X
OEM Part Number
3687X-053
E - Brake Surface Width
6.52
H - Pilot Diameter
8.78
G - Overall Depth
9.74
Drum Type
BDA
Wheel Type
Disc
Drum Mount
Outboard
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
