AS93700
Spring Air Watson and Chalin
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$244.95
$293.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

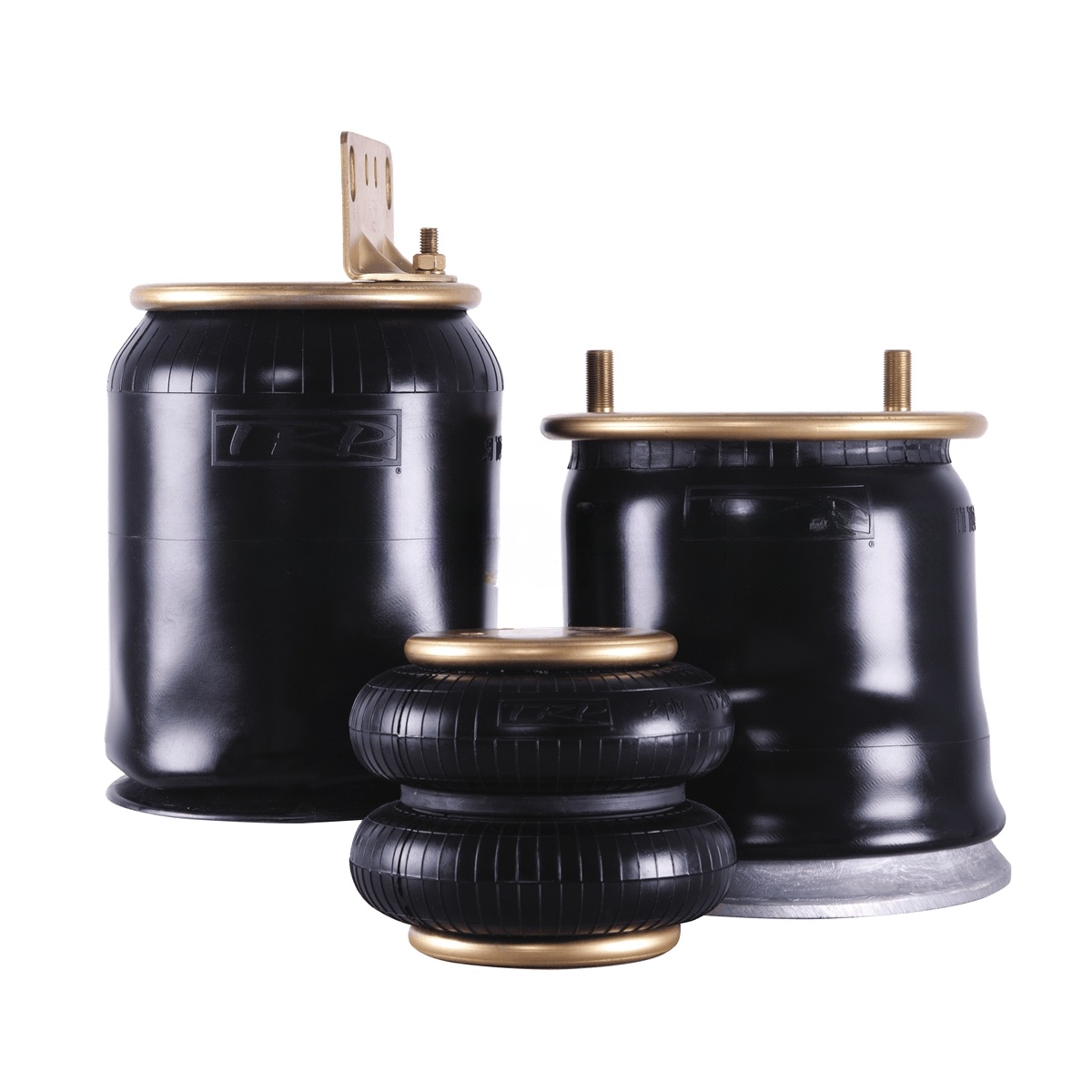

The Spring Air Watson and Chalin is a high-performance suspension component built to withstand the rigors of heavy-duty trucking. Constructed from a unique fabric material with a higher burst rate, it offers superior durability and extended service life. Its chemically formulated vulcanized material resists ozone effects, ensuring consistent performance over time. The spring features an optimized wall thickness for better fatigue resistance and is 100% leak tested for quality assurance. Suitable for Watson & Chalin liftables and trucks, including models TL-2200-9 through 20, TL-2200-23 through 34, and others, it provides reliable ride height and load support. With a bellows number 9 10-21, diameter of 12.6 inches, and a maximum height of 28.5 inches, this spring enhances vehicle stability and comfort. Source One Parts Center is your premier destination for genuine OEM parts, offering unmatched quality, expert guidance, and competitive prices to keep your Kenworth fleet operating at peak performance.
SPECIFICATIONS
VMRS Code
016-014-008
Bellows No.
: 9 10-21
Use With
: Watson & Chalin; W&C Liftables: TL-2200-9 Thru 20 (Ride), TL-2200-23 Thru 34 (Ride), TL-2200-SSR (Ride); W&C Truck: AL-2200-LP (Ride), SL-2200-13.5, -15 (Ride); W&C Trucks- Pushers Or Tags: WCAL-2200 (Ride), Cont. WCAL-2200-LW (Ride)
OEM Part Number
AS93700-090R
Diameter (in)
Diameter (in): 12.6
Load at 100 psi (lb)
Load at 100 psi (lb): 7100
Load at 80 psi (lb)
Load at 80 psi (lb): 5600
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Max Height (in)
Max Height (in): 28.5
Min Height (in)
Min Height (in): 9.9
Ride Height (in)
Ride Height (in): 18
Weight (lb)
Weight (lb): 17.0192
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
