AS93670

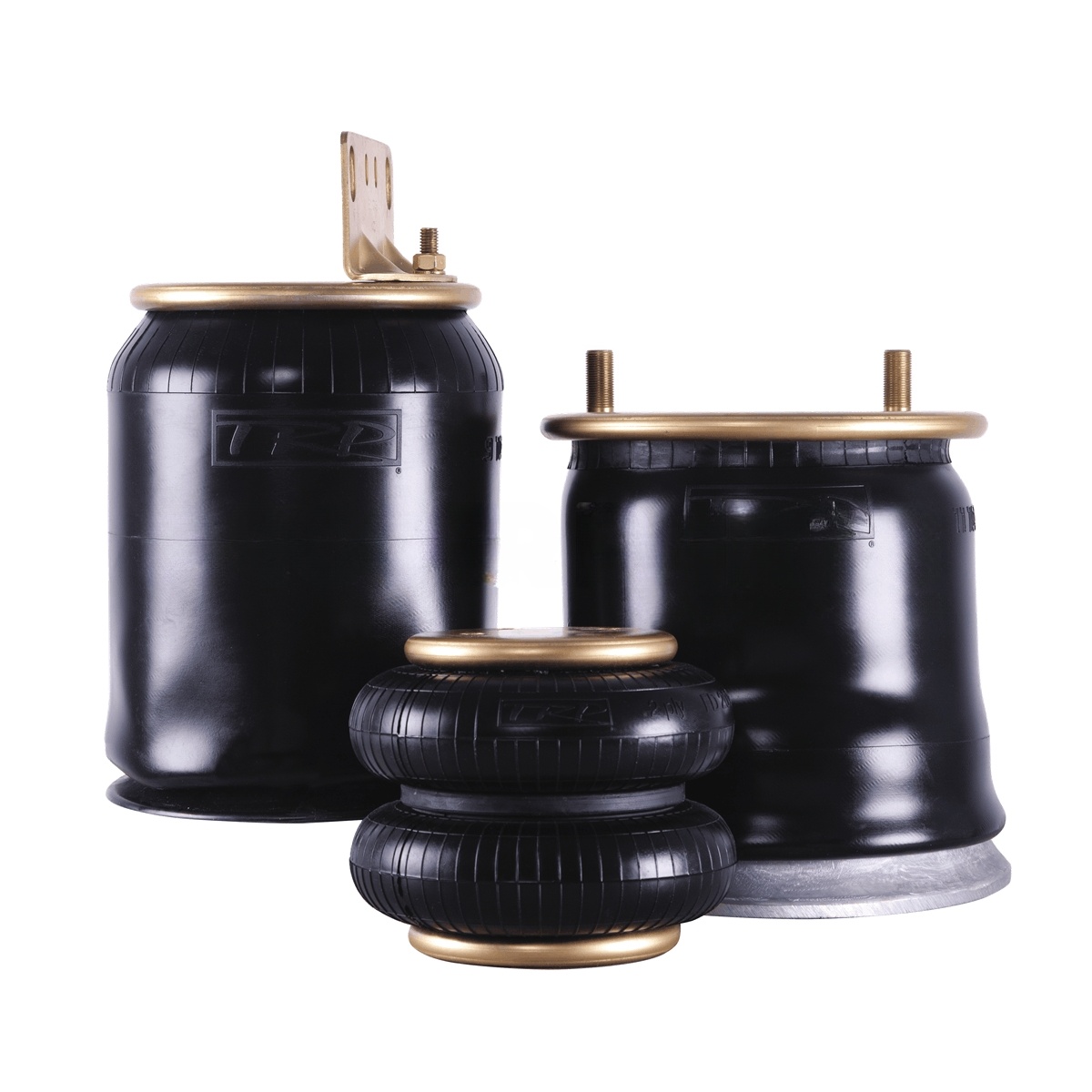

Spring Air Hendrickson Auxiliary
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$234.95
$281.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Air Hendrickson Auxiliary is a durable suspension component designed to improve load handling and ride quality in auxiliary air suspension systems. Made from a specialized fabric material with a higher burst rate, it ensures longer service life and reliable performance. Its chemically formulated vulcanized construction resists ozone effects, making it suitable for demanding trucking environments. The spring features an optimized wall thickness for enhanced fatigue life and is 100% leak tested for quality assurance. Compatible with Hendrickson HLM-1 & 2 and MTL-45 & 50 models, it provides consistent support with a bellows number 9 10-21, diameter of 12.6 inches, and a maximum height of 28.5 inches. Whether replacing worn parts or upgrading your suspension system, trust Source One Parts Center for genuine OEM parts that deliver perfect fitment, durability, and performance. We are committed to providing the best selection, prices, and customer service for your Kenworth truck needs.
SPECIFICATIONS
VMRS Code
016-014-008
Bellows No.
: 9 10-21
Use With
: Hendrickson Auxiliary; Hendrickson: HLM-1&2 (Ride); Hendrickson MTL-45 & 50 (Ride)
OEM Part Number
AS93670-090R
Diameter (in)
Diameter (in): 12.6
Load at 100 psi (lb)
Load at 100 psi (lb): 7100
Load at 80 psi (lb)
Load at 80 psi (lb): 5600
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
100% Leak Tested
Optimized wall thickness for better fatigue life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
100% Leak Tested
Max Height (in)
Max Height (in): 28.5
Min Height (in)
Min Height (in): 9.9
Ride Height (in)
Ride Height (in): 18
Weight (lb)
Weight (lb): 17.3756
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
