AS90820
Hendrickson Auxiliary Spring
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$189.95
$227.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

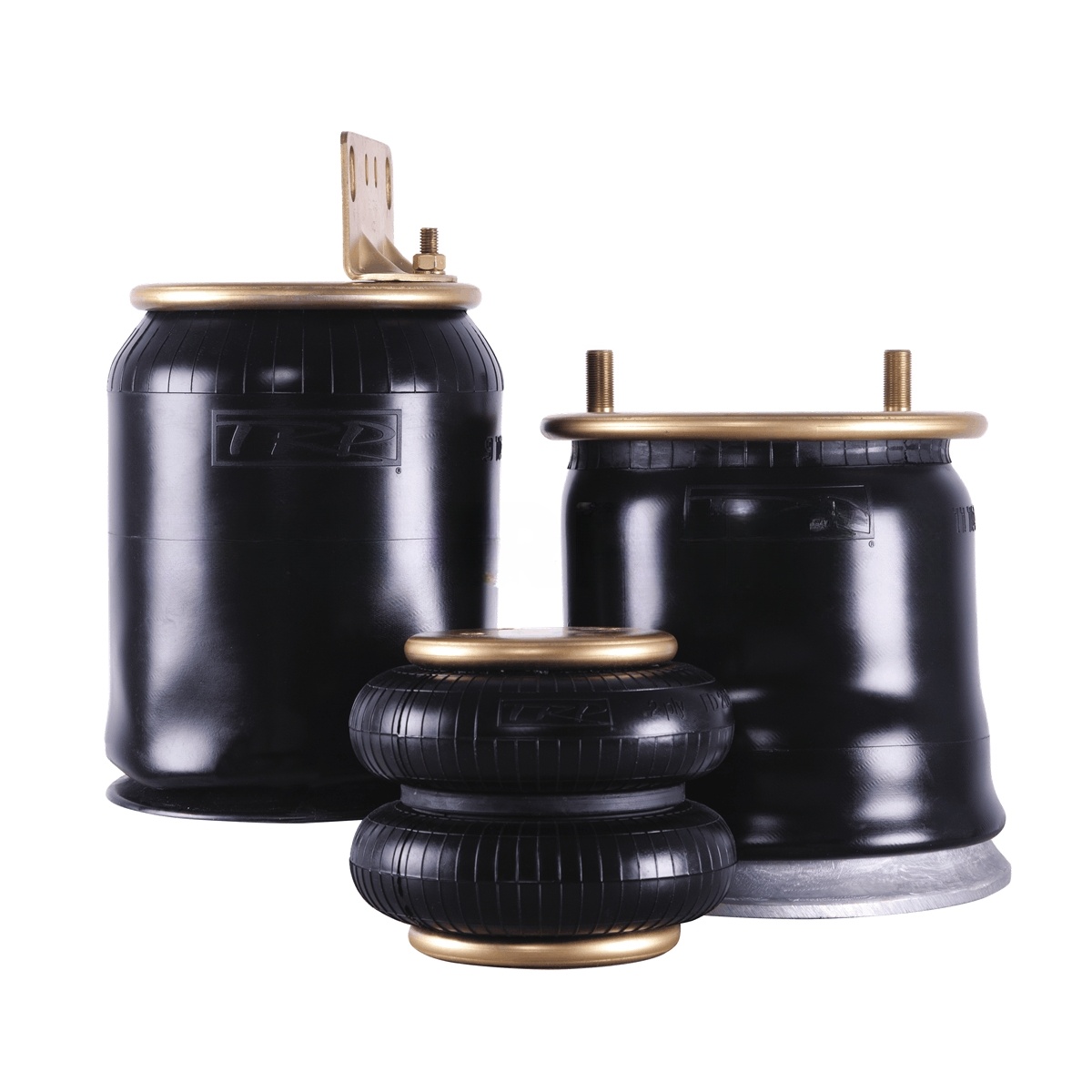

The Hendrickson Auxiliary Spring is a robust component designed for auxiliary suspension systems, providing enhanced load support and ride comfort. Made from a high-burst-rate fabric material, it resists ozone effects and features an optimized wall thickness for improved fatigue life. This 100% leak-tested spring supports various heavy-duty applications, supporting loads up to 7,000 pounds at 100 psi. Compatible with Hendrickson T-9-106 and other systems, it ensures reliable performance and durability. Source One Parts Center is your premier destination for genuine OEM parts, ensuring your Kenworth truck maintains peak performance.
SPECIFICATIONS
VMRS Code
016-014-008
Bellows No.
9 10-16
OEM Part Number
AS90820-090R
Diameter (in)
Diameter (in): 12.6
Use With
Hendrickson Auxiliary; Hendrickson: T-9-106, 278, 313, TMB-14-120, TMB-17-135; Neway Non-Powered Truck: ART-500-B, -B1, 500-US, 500-US-A; ART-505-B, B-1, ART-505-C, C-1, ART-541-B, ART-550-US, -A, ARTA TC-120-D, TC-120-D; Neway Powered Truck: ARD-125, -6, 244-6, ARDST-123, 244-6, ARD-120-6, ARD-238-6, ARD-125, -8, 244-8, ARD-165-A, -B; ARD-190-B; Neway Trailer Air: AR-120, 120-US, 120-US-F, AR-75-6, 9, AR-165-US; W&C Liftables: WB-2500-7.5, -9; W&C Trailers: TA-2075-9
Load at 100 psi (lb)
Load at 100 psi (lb): 7000
Load at 80 psi (lb)
Load at 80 psi (lb): 5500
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
100% Leak Tested
Optimized wall thickness for better fatigue life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
100% Leak Tested
Max Height (in)
Max Height (in): 21.5
Min Height (in)
Min Height (in): 7.9
Ride Height (in)
Ride Height (in): 13.5
Weight (lb)
Weight (lb): 14.9116
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
