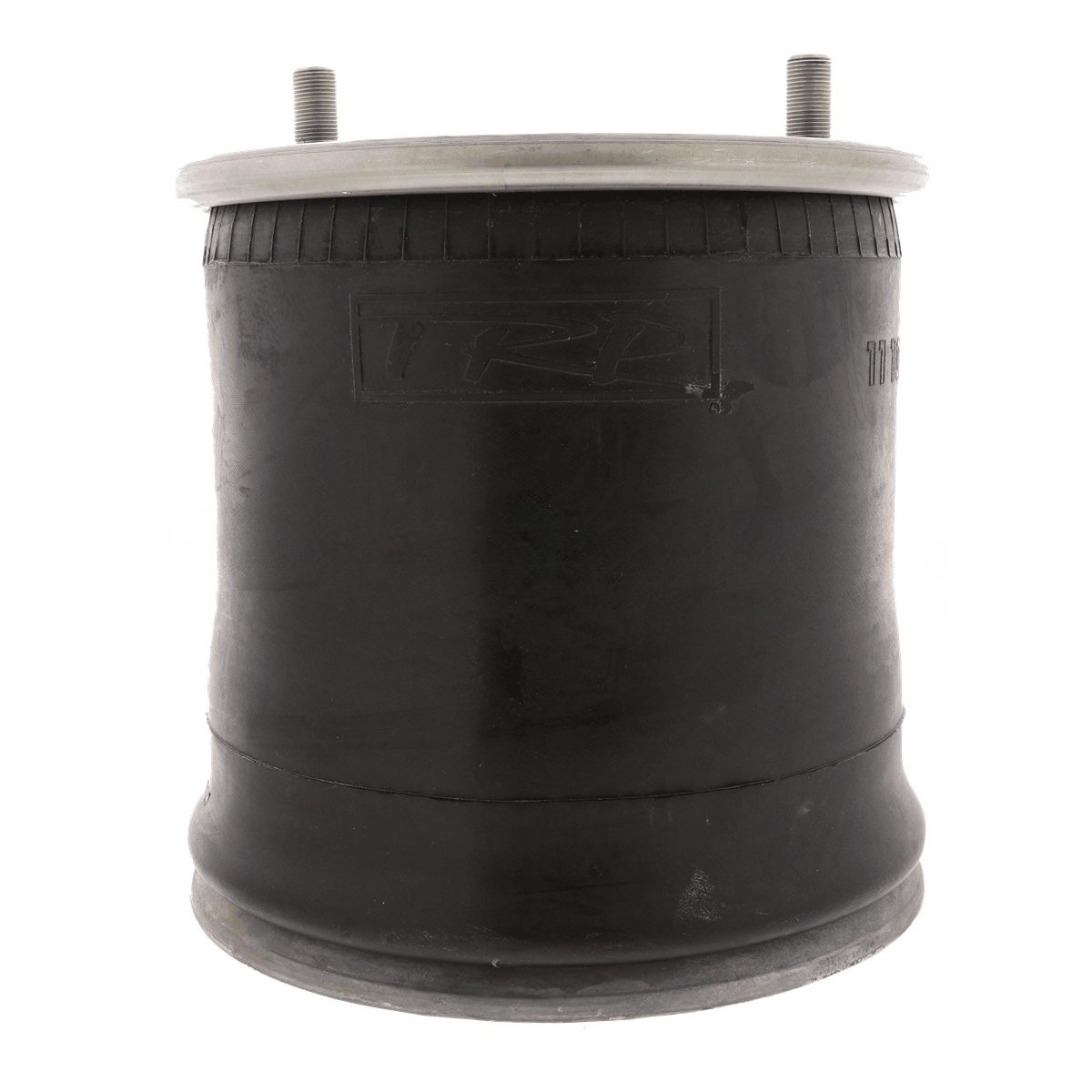

AS80500
Auxiliary Air Spring Hendrickson
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$209.95
$251.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Auxiliary Air Spring Hendrickson T-17-141 and related models is engineered for long-lasting support in heavy-duty suspension systems. Made from a chemically formulated vulcanized fabric material, it resists ozone effects and features a higher burst rate for durability. With a diameter of 14.7 inches and a ride height of 10 inches, it supports loads up to 10,400 lbs at 100 psi. Compatible with various Hendrickson and W&C models, this spring provides a stable, comfortable ride and reliable performance. Fully leak tested for safety, it is the ideal choice for maintaining suspension integrity. Source One Parts Center is your best source for genuine OEM parts for Kenworth trucks, ensuring quality and reliability.
SPECIFICATIONS
VMRS Code
016-014-008
Bellows No.
11 10.5C-16
OEM Part Number
AS80500-090R
Diameter (in)
Diameter (in): 14.7
Use With
Hendrickson Auxiliary; Hendrickson: HT-300T(All), T-17-141, 174, 284, T-15-140, 150, 172, 244, 324, 376, HL-015 (Ride); W&C Trailer: TA-300-15, 16, 17, 22, 23B, TA-300FM-16B, TA-5000-DB-24, -DB-30, -F-24, TA-525DB, TA-525FS
Load at 100 psi (lb)
Load at 100 psi (lb): 10400
Load at 80 psi (lb)
Load at 80 psi (lb): 8200
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Max Height (in)
Max Height (in): 18.4
Min Height (in)
Min Height (in): 5.4
Ride Height (in)
Ride Height (in): 10
Weight (lb)
Weight (lb): 21.4456
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
