AS80321
Watson Spring 6.2" Replacement
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$214.95
$257.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

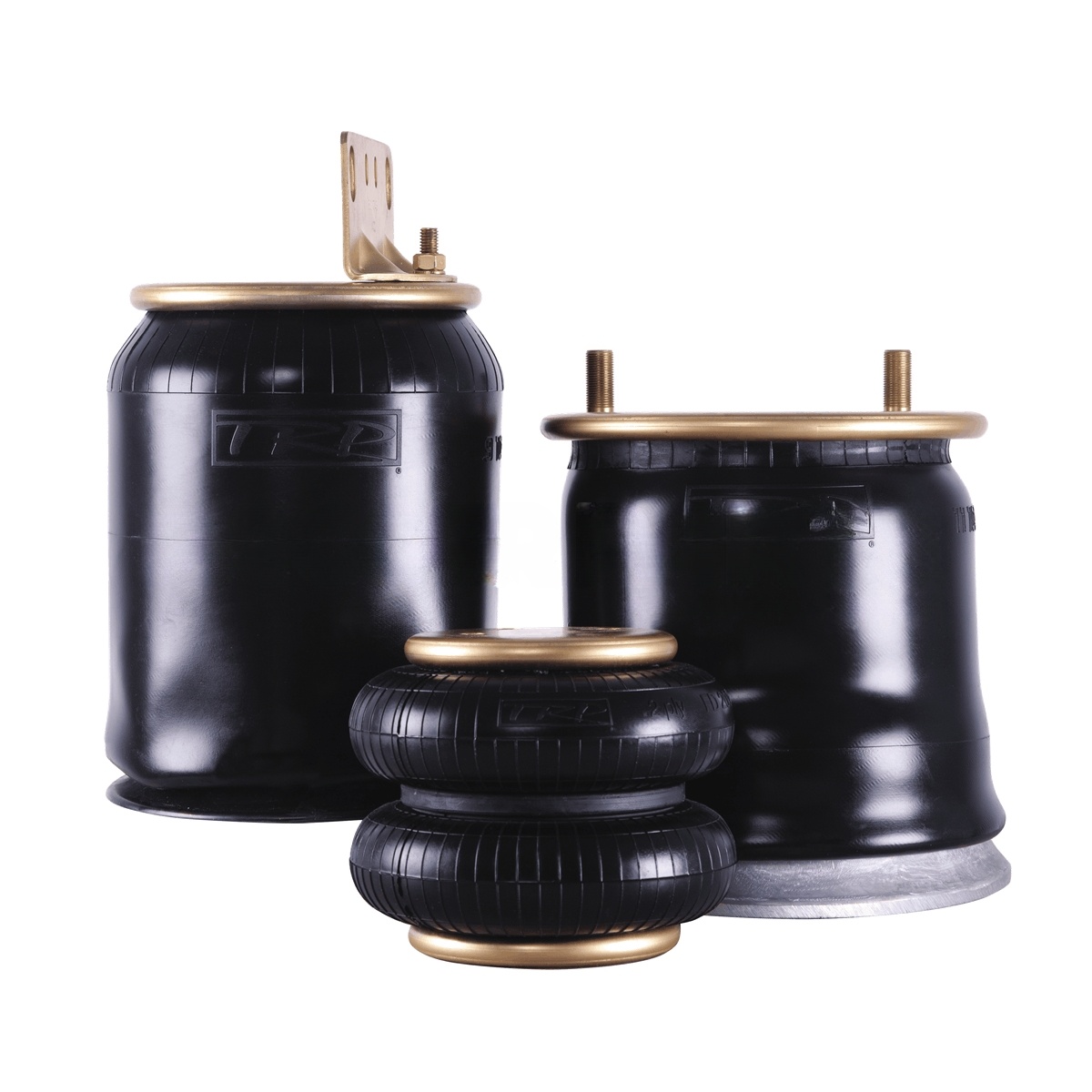

The Watson Spring 6.2" Replacement is a high-quality air spring designed to restore or upgrade your Kenworth truck’s suspension system. Made with a chemically formulated vulcanized material, it offers superior ozone resistance and durability. Its optimized wall thickness provides enhanced fatigue life, ensuring long-lasting performance under demanding loads. The spring features a maximum height of 18.9 inches and a ride height of 12 inches, making it suitable for various suspension configurations. Regular replacement with this OEM-quality spring helps maintain ride comfort, vehicle stability, and safety. Source One Parts Center is the best place to purchase genuine OEM parts for Kenworth vehicles, providing authentic, reliable components that support optimal suspension function.
SPECIFICATIONS
VMRS Code
016-014-008
OEM Part Number
AS80321-090R
Features
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Diameter (in)
Diameter (in): 12.8
Bellows No.
FT 330-29
Load at 100 psi (lb)
Load at 100 psi (lb): 6800
Load at 80 psi (lb)
Load at 80 psi (lb): 5400
Max Height (in)
Max Height (in): 18.9
Min Height (in)
Min Height (in): 4.5
Ride Height (in)
Ride Height (in): 12
OEM Cross Reference
Watson & Chalin AS-0048
Weight (lb)
Weight (lb): 14.1196
