AS78470

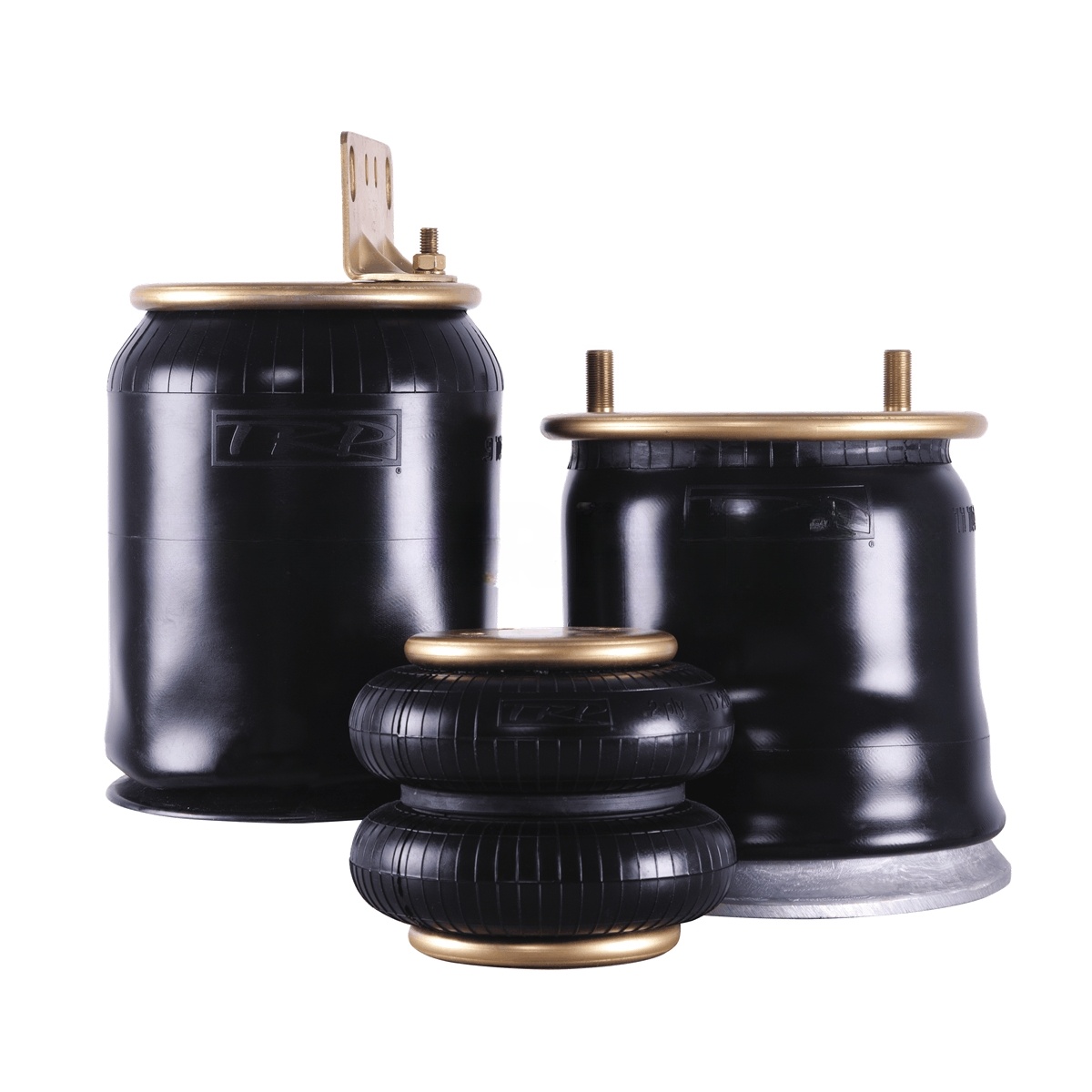

Auxiliary Air Spring Hendrickson
Kenworth®
AVAILABLE
6 are currently available
Ships within 8-10 business days
$269.95
$323.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Experience enhanced ride quality and durability with the Auxiliary Air Spring Hendrickson, designed specifically for Hendrickson HLR Series RT14D-X truck and trailer suspension systems. Crafted from chemically formulated vulcanized material, this spring withstands ozone effects and features a higher burst rate for extended service life. Its optimized wall thickness ensures better fatigue resistance, providing reliable support under varying loads. The spring's dimensions include a diameter of 15.9 inches and a ride height of 13 inches, with a maximum height of 21.3 inches and a minimum of 4.6 inches, making it adaptable to different suspension setups. It is 100% leak tested to guarantee performance and safety, supporting loads up to 11,100 lbs at 100 psi. Whether used in liftable air suspension systems or other applications, this spring offers superior quality and longevity. Source One Parts Center is your best source for genuine OEM parts for Kenworth vehicles, ensuring optimal performance and peace of mind.
SPECIFICATIONS
VMRS Code
016-014-008
OEM Part Number
AS78470-090R
Features
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Diameter (in)
Diameter (in): 15.9
Bellows No.
FT 530-35
Use With
Hendrickson Auxiliary; Hendrickson: HLR Series RT14D-X (Truck) (Ride), HLR Series RW14B-X &14C-X (Trailer) (Ride)
Load at 100 psi (lb)
Load at 100 psi (lb): 11100
Load at 80 psi (lb)
Load at 80 psi (lb): 8900
Max Height (in)
Max Height (in): 21.3
Min Height (in)
Min Height (in): 4.6
Ride Height (in)
Ride Height (in): 13
Weight (lb)
Weight (lb): 28.5
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
