AS78460

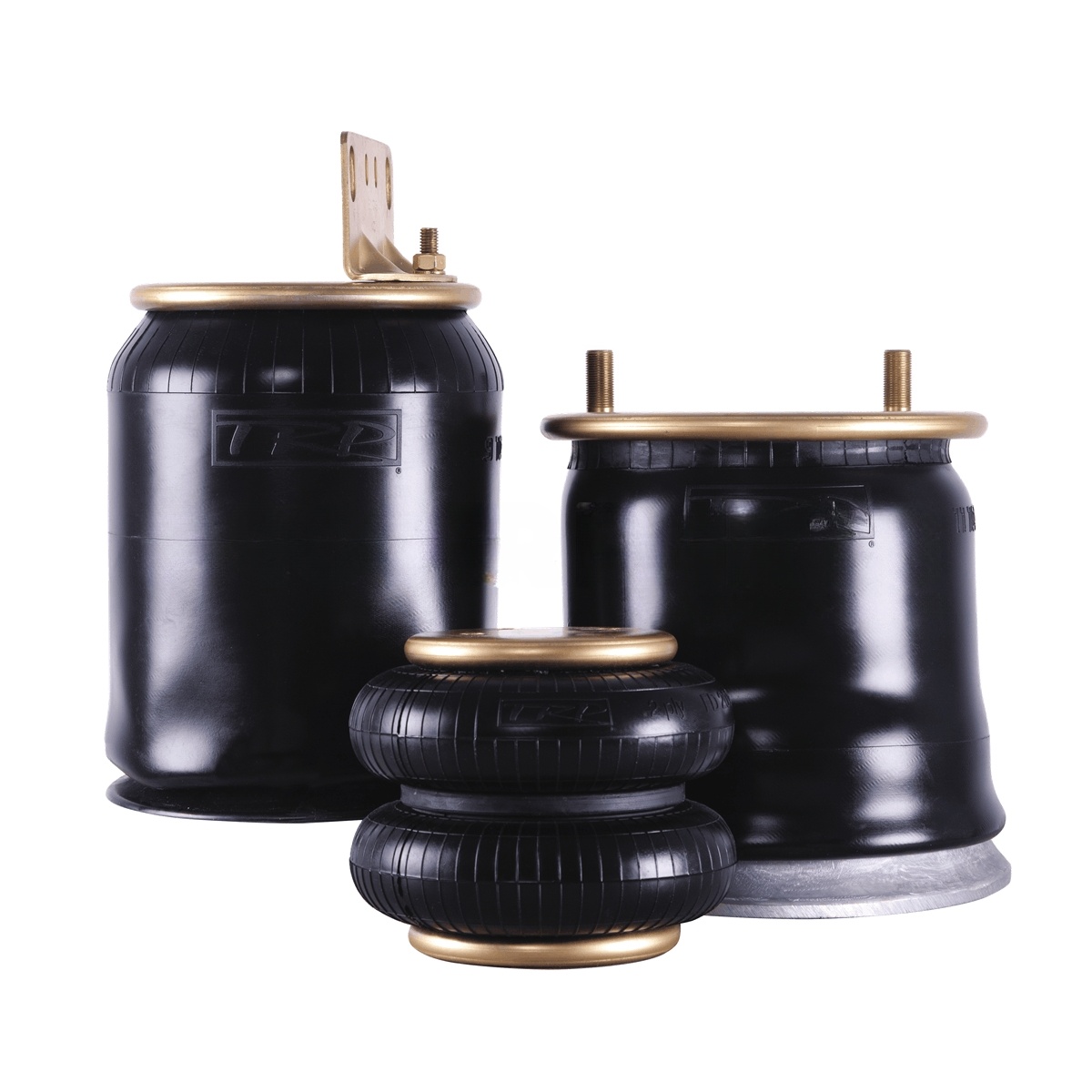

Auxiliary Air Spring Hendrickson
Kenworth®
BACK ORDERED
Please contact us for information on lead time
$269.95
$323.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your Hendrickson HLR Series ST-031 suspension with the reliable Auxiliary Air Spring Hendrickson. Made from a specially formulated vulcanized fabric material, this spring resists ozone effects and features a higher burst rate for longer-lasting performance. Its design includes a diameter of 15.9 inches and a ride height of 13 inches, with a maximum height of 21.3 inches and a minimum of 4.6 inches, ensuring compatibility with various liftable air suspension systems. The spring is thoroughly leak tested and supports loads up to 11,100 lbs at 100 psi, providing consistent support and ride comfort. Suitable for trailer and truck applications, it is built for durability and longevity. Source One Parts Center is your premier destination for authentic OEM parts for Kenworth trucks, guaranteeing quality and reliable service.
SPECIFICATIONS
VMRS Code
016-014-008
OEM Part Number
AS78460-090R
Diameter (in)
Diameter (in): 15.9
Bellows No.
FT 530-35
Use With
Hendrickson Auxiliary; Hendrickson: HLR Series ST-031 (Ride)
Load at 100 psi (lb)
Load at 100 psi (lb): 11100
Load at 80 psi (lb)
Load at 80 psi (lb): 8900
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Max Height (in)
Max Height (in): 21.3
Min Height (in)
Min Height (in): 4.6
Ride Height (in)
Ride Height (in): 13
Weight (lb)
Weight (lb): 28.5
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
