AS78430

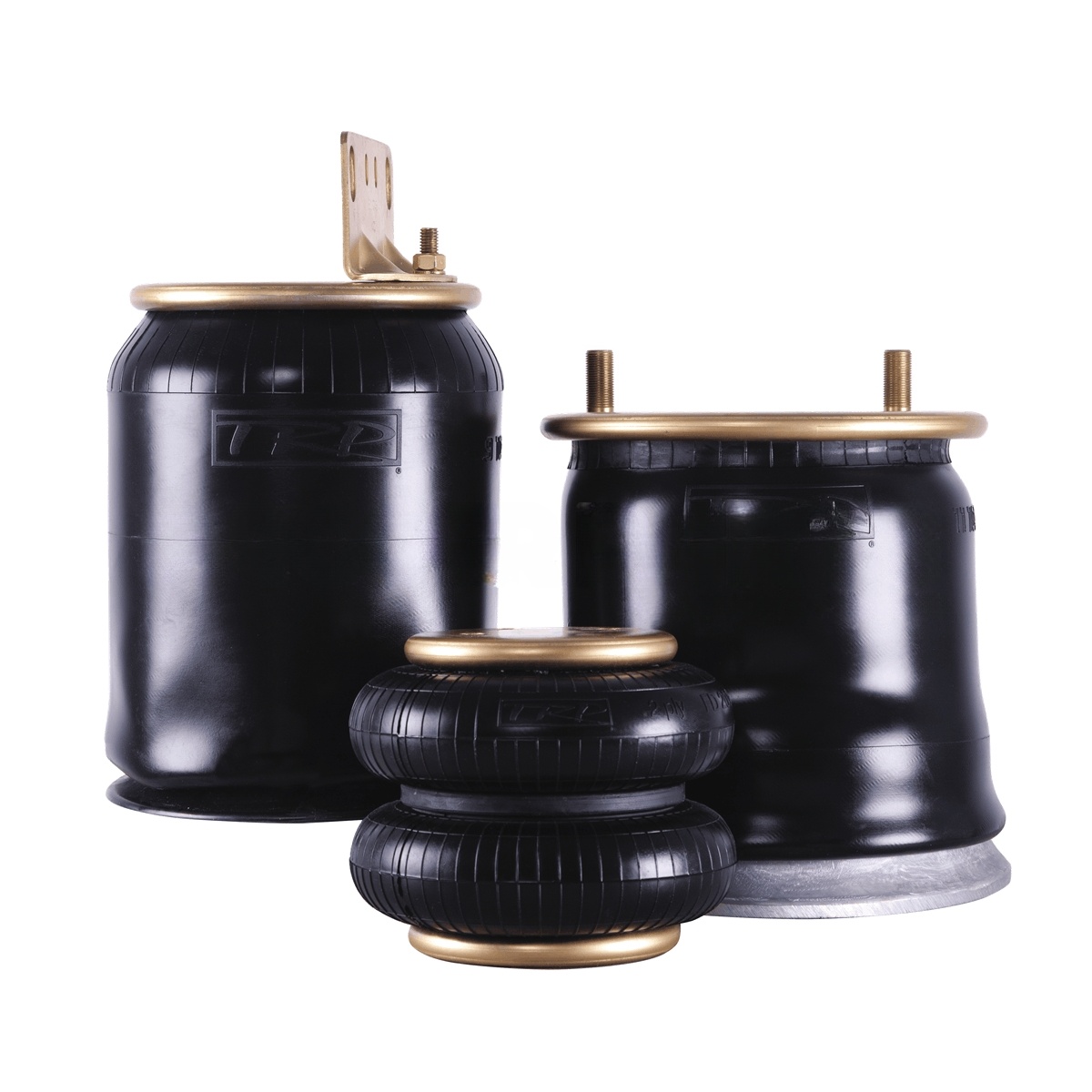

Spring Air Hendrickson Auxiliary
Kenworth®
AVAILABLE
4 are currently available
Ships within 8-10 business days
$289.95
$347.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Air Hendrickson Auxiliary is a high-performance suspension component built from chemically formulated vulcanized material that resists ozone effects. Featuring an optimized wall thickness for superior fatigue life and a higher burst rate, this spring is 100% leak tested for reliability. Designed for liftable air suspension systems, it provides consistent support and ride quality. With a diameter of 15.9 inches and a maximum height of 21.3 inches, it supports load capacities up to 11,100 lbs at 100 psi. Trust Source One Parts Center for genuine OEM parts that ensure your Kenworth truck maintains peak performance and durability.
SPECIFICATIONS
VMRS Code
016-014-008
OEM Part Number
AS78430-090R
Features
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
100% Leak Tested
Diameter (in)
Diameter (in): 15.9
Bellows No.
FT 530-35
Use With
Hendrickson Auxiliary; Hendrickson: HLR Series ST-004 (Ride); HLR Series RW14A-X (Ride)
Load at 100 psi (lb)
Load at 100 psi (lb): 11100
Load at 80 psi (lb)
Load at 80 psi (lb): 8900
Max Height (in)
Max Height (in): 21.3
Min Height (in)
Min Height (in): 4.6
Ride Height (in)
Ride Height (in): 13
Weight (lb)
Weight (lb): 28.5
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
