AS69470
Auxiliary Air Spring Hendrickson
Kenworth®
AVAILABLE
5 are currently available
Ships within 8-10 business days
$154.95
$185.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

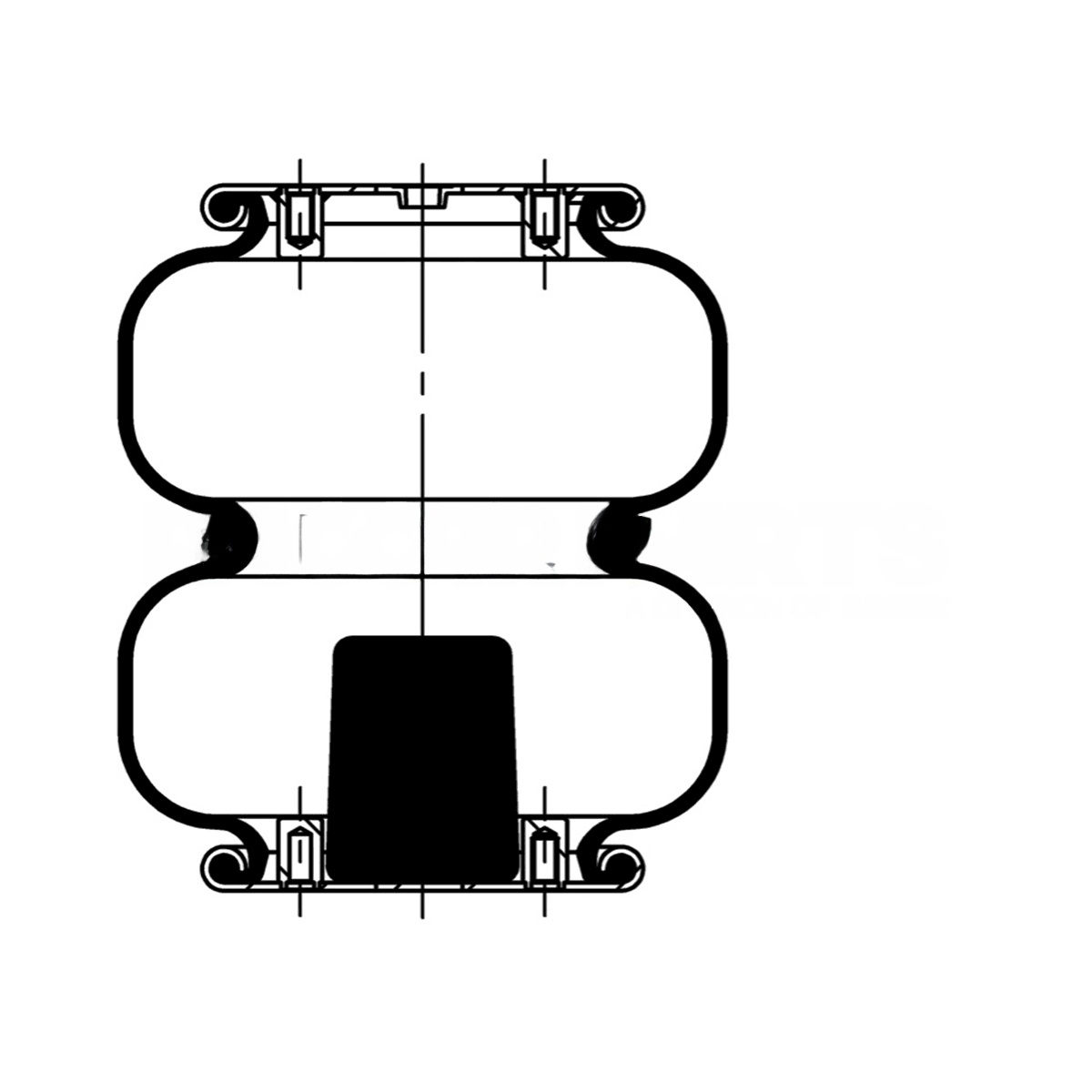

The Auxiliary Air Spring Hendrickson is a high-performance suspension component designed to enhance ride quality and durability for Kenworth trucks. Crafted from a unique fabric material with a higher burst rate, this spring offers longer service life and improved fatigue resistance. Its chemically formulated vulcanized material withstands ozone effects, ensuring reliable performance in demanding conditions. The spring is 100% leak tested and features optimized wall thickness for better fatigue life, making it an ideal choice for heavy-duty applications. With a diameter of 10.4 inches and a maximum height of 13.5 inches, it supports a load capacity of up to 3,450 pounds at 100 psi. This component is compatible with Hendrickson auxiliary suspension systems and is a perfect replacement for OEM parts. Trust Source One Parts Center for genuine OEM parts that guarantee quality and fitment for your Kenworth vehicle. Whether you're restoring or upgrading your suspension, this auxiliary air spring ensures a smooth, safe, and reliable ride, backed by the durability and engineering standards of Hendrickson.
SPECIFICATIONS
VMRS Code
016-014-008
OEM Part Number
AS69470-090R
Diameter (in)
Diameter (in): 10.4
Bellows No.
FD 200-25
OEM Cross Reference
Hendrickson Auxiliary; Hendrickson Trailer S8701; Ridewell 1003586947C
Load at 100 psi (lb)
Load at 100 psi (lb): 3450
Load at 80 psi (lb)
Load at 80 psi (lb): 2750
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Max Height (in)
Max Height (in): 13.5
Min Height (in)
Min Height (in): 3.7
Ride Height (in)
Ride Height (in): 10
Weight (lb)
Weight (lb): 8.1004
