AS69350
Auxiliary Air Spring Hendrickson
Kenworth®
AVAILABLE
More than 10 are currently available
Ships within 8-10 business days
$174.95
$209.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

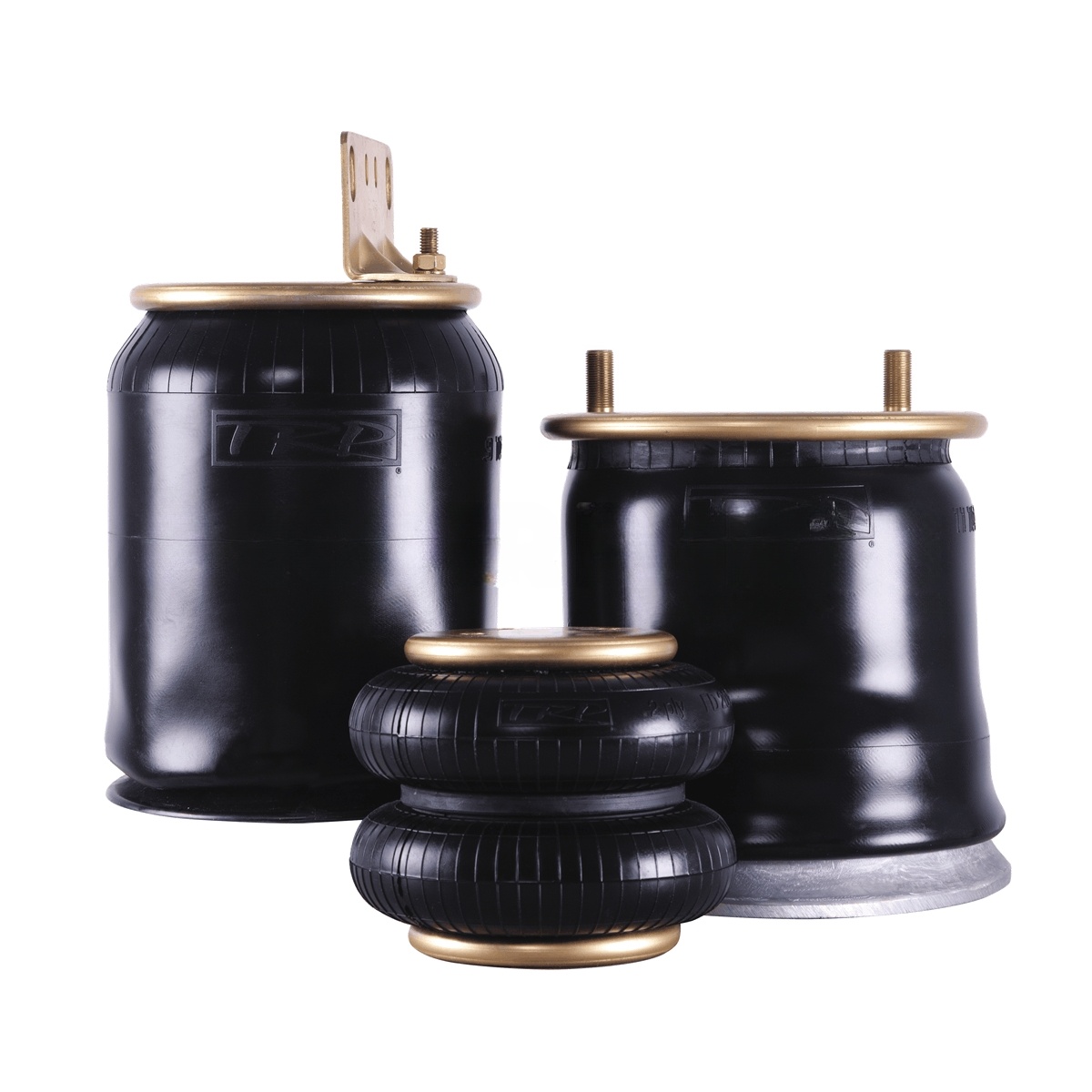

The Auxiliary Air Spring Hendrickson is a high-quality suspension component designed to enhance ride comfort and durability for Kenworth trucks equipped with Hendrickson lift suspensions. Crafted from a unique fabric material with a higher burst rate, this spring offers superior fatigue resistance and longer service life. Its chemically formulated vulcanized construction withstands ozone effects, ensuring reliable performance over time. The spring features optimized wall thickness for improved durability and is 100% leak tested for quality assurance. With a diameter of 9.8 inches and a maximum height of 10.5 inches, it is suitable for use with Hendrickson HLM-1 and HLM-2 lift suspensions, providing a ride height of approximately 8 inches under normal conditions. This component is essential for maintaining proper load support and ride quality in heavy-duty applications. Source One Parts Center is the best place to purchase genuine OEM parts for Kenworth vehicles, offering unmatched quality, reliability, and expert support to keep your truck performing at its best.
SPECIFICATIONS
VMRS Code
016-014-008
OEM Part Number
AS69350-090R
Diameter (in)
Diameter (in): 9.8
Bellows No.
FD 200-19
Use With
Hendrickson Auxiliary; Hendrickson: HLM-1&2 (Lift)
Load at 100 psi (lb)
Load at 100 psi (lb): 3200
Load at 80 psi (lb)
Load at 80 psi (lb): 2560
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
100% Leak Tested
Max Height (in)
Max Height (in): 10.5
Min Height (in)
Min Height (in): 3.5
Ride Height (in)
Ride Height (in): 8
Weight (lb)
Weight (lb): 7.04
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
