DESCRIPTION

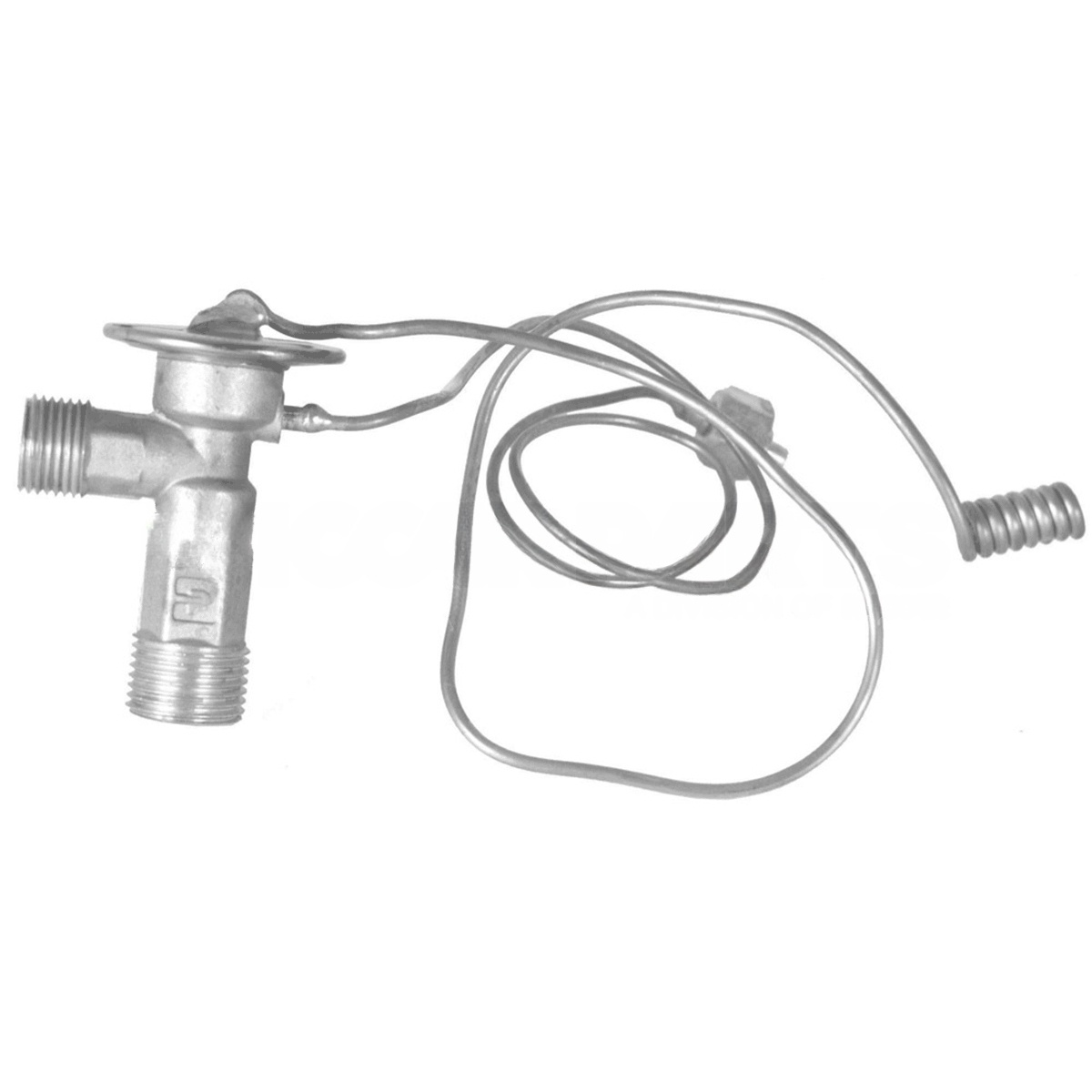

The HVAC Expansion Valve is an essential part of your Kenworth truck's air conditioning system, controlling refrigerant flow to deliver consistent cooling performance. Featuring a 1/4" female O-ring nut, No. 6 male flare inlet, and No. 8 male flare outlet, along with precise tube lengths of 12" and 13" for the capillary and equalizer tubes, this OEM component ensures efficient refrigerant regulation. Its durable construction and perfect fit guarantee reliable operation, helping to maintain a comfortable cabin environment. Trust Source One Parts Center for genuine OEM parts, offering high-quality, dependable components and expert support to keep your Kenworth truck's HVAC system functioning flawlessly.
SPECIFICATIONS
VMRS Code
001-001-049
Tonnage
1-1/2 ton
Nut
1/4" Female O-Ring
Capillary Tube Length
12"
Equalizer Tube Length
13"
OEM Part Number
EA10200-584F
Inlet
No. 6 Male Flare
Outlet
No. 8 Male Flare
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
