103009BXW

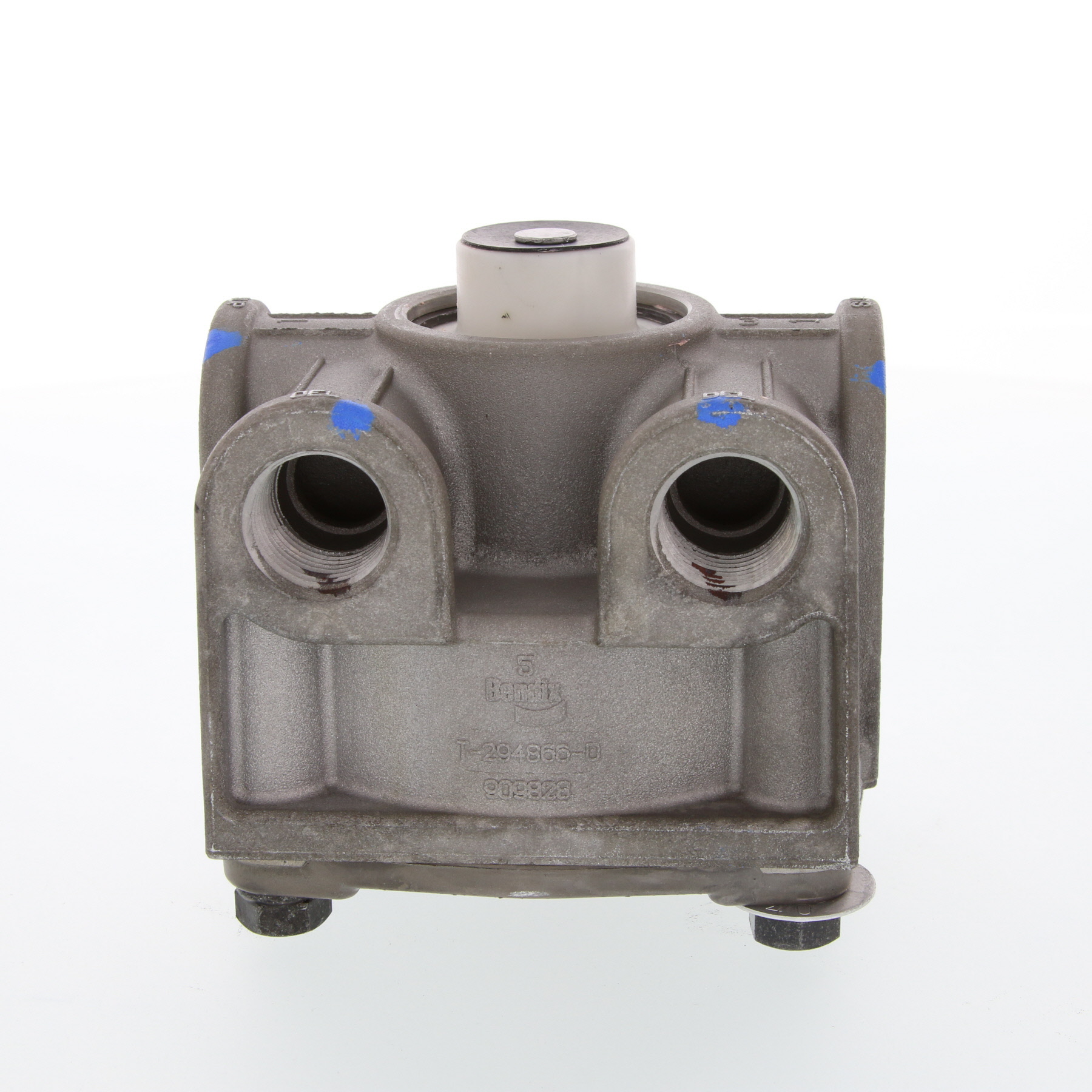

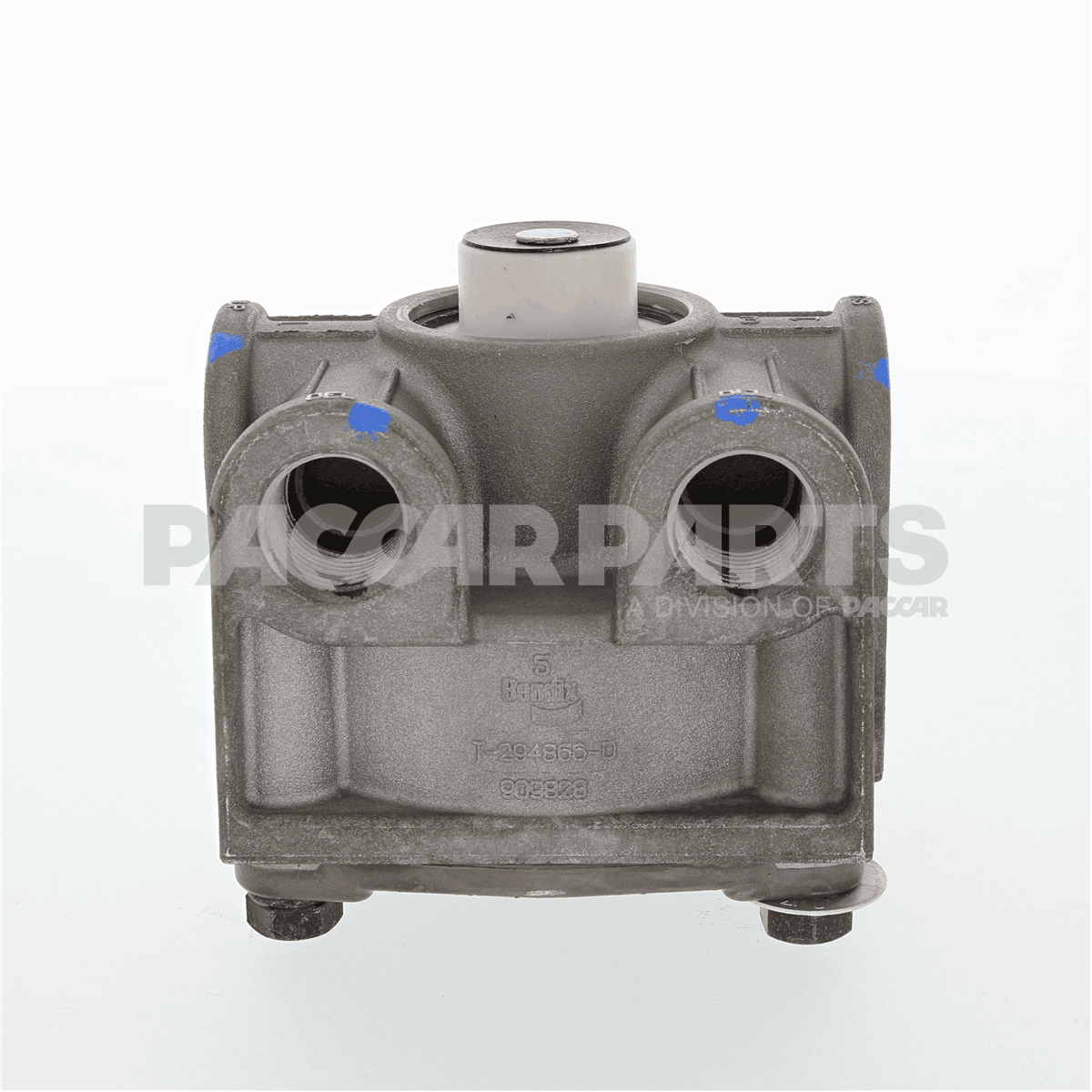

Remanufactured Horizontal Delivery Port Relay Valve with Mounting Bracket
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$86.95
$104.34
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Remanufactured Horizontal Delivery Port Relay Valve is an essential component of the air brake system on Kenworth trucks, designed to control air pressure delivery with precision. Featuring a 3/4-inch supply port and a 1/2-inch delivery port mount side, this valve ensures reliable operation and consistent braking performance. The remanufactured unit includes a mounting bracket for easy installation and is built to meet OEM standards, providing a cost-effective yet dependable solution for brake system maintenance. Its crack pressure of 4 psi guarantees accurate activation, contributing to vehicle safety and efficiency. Source One Parts Center is your trusted source for genuine OEM parts, offering the highest quality components to keep your Kenworth vehicle in peak condition.
SPECIFICATIONS
VMRS Code
013-010-008
Delivery Port Mount Side
1/2"
Maintenance Kit Part No.
102802BXW
Manufacturer Part Number
103009
OEM Part Number
103009BXW-110
Reman Part No.
103009RXM1DRMN
Mounting Bracket
296010N
Supply Port
3/4"
Crack Pressure
4 psi
