FG2461

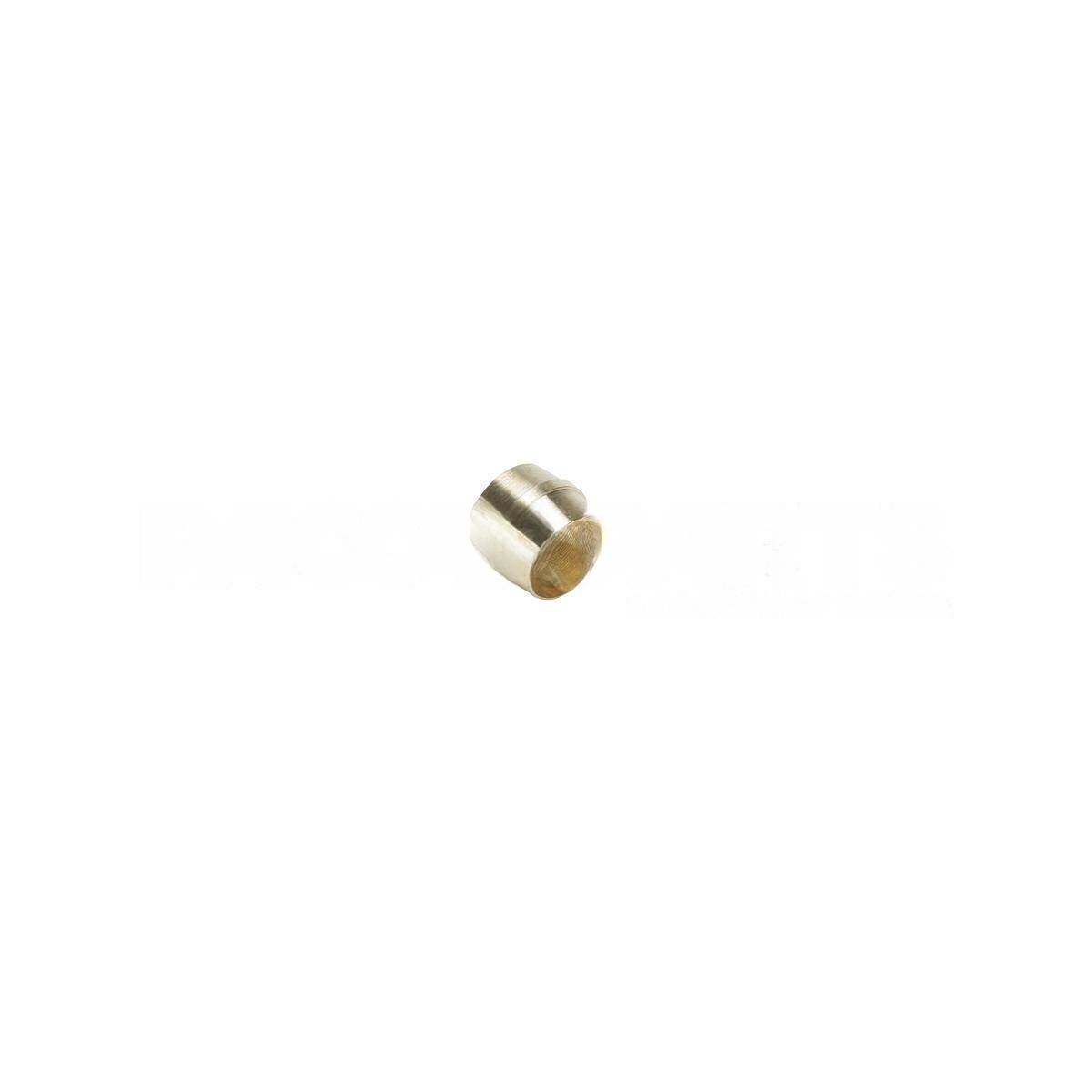

Sleeve - Compression 3/4 J8
Kenworth®
IN STOCK
3 are currently available
Ships within 1 business day
$2.49
$2.99
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Compression Sleeve in 3/4-inch size is a high-quality component designed to reinforce and secure hydraulic and pneumatic fittings in Kenworth trucks. Made from durable brass with stainless steel tube support, this sleeve provides a tight fit around tubing, ensuring leak-proof connections. Compatible with SAE J844 Type A & B nylon tubing, it withstands maximum pressures of 150 PSI and temperatures from -40°C to 93°C. Its corrosion-resistant construction guarantees long-term durability in demanding environments. Proper installation with compression fittings ensures system integrity and safety. Source One Parts Center is your trusted source for genuine OEM parts for Kenworth vehicles, offering top-tier quality and expert support for all your repair and maintenance needs.
SPECIFICATIONS
VMRS Code
013-010-281
Body Material
: Brass
Nut Material
: Brass
Sleeve Material
: Brass
Connection 1 Style
: Compression
Industry Standards
: DOT FMVSS 571.106, SAE J1131, SAE J246
Tubing Material
: SAE J844 Type A & B Nylon Tubing
Shape
: Sleeve
Tube Support Material
: Stainless Steel
Style
: Tube
Connection 1 Tube O.D. (Inch)
Connection 1 Tube O.D. (Inch): 0.75
OEM Part Number
FG2461-410A
Maximum Working Pressure (BAR)
Maximum Working Pressure (BAR): 10
Maximum Working Pressure (PSI)
Maximum Working Pressure (PSI): 150
Maximum Working Temperature (C)
Maximum Working Temperature (C): 93
Maximum Working Temperature (F)
Maximum Working Temperature (F): 200
Minimum Working Temperature (C)
Minimum Working Temperature (C): -40
Minimum Working Temperature (F)
Minimum Working Temperature (F): -40
