AS99210
Neway Air Spring
Kenworth
AVAILABLE
5 are currently available
Ships within 8-10 business days
$194.95
$233.94
This truck part is made by Kenworth. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

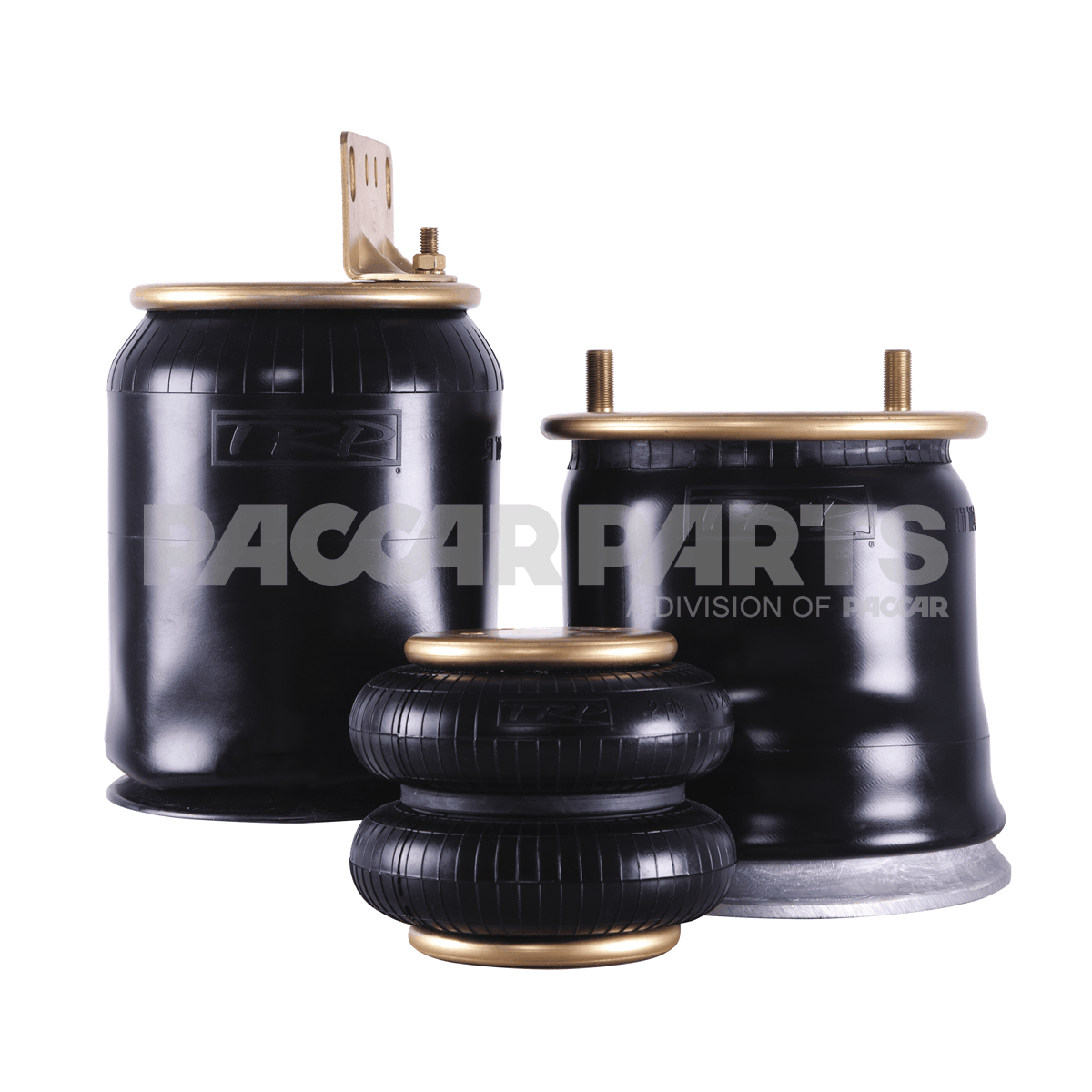

Upgrade your Kenworth's suspension with the Neway Air Spring, engineered for superior performance in rear air suspension systems. Featuring a rolling lobe design crafted from chemically formulated vulcanized material, this component resists ozone effects and offers enhanced durability. With a plate diameter of 9 inches and a diameter of 12.6 inches, it supports load capacities up to 7100 lbs at 100 psi, ensuring a smooth and stable ride. Its optimized wall thickness provides better fatigue resistance, while the high burst rate guarantees longer service life. Compatible with various trailer air systems, this air spring delivers reliable performance under demanding conditions. Trust Source One Parts Center for genuine OEM parts to keep your Kenworth truck running at peak efficiency.
SPECIFICATIONS
VMRS Code
016-008-001
OEM Part Number
AS99210
Details
Load at 80 psi (lb): 5600; Plate Diameter (in): 9; Weight (lb): 13.046; Diameter (in): 12.6; : Rolling Lobe; Max Height (in): 22.2; : Composite; Load at 100 psi (lb): 7100; : Neway Trailer Air: AR-92-8, AR-92-12, 14, 15, 16, 17, 18, AR-93-6, 7, AR-93-14, RLU-228 (6,7) -3, RLU-228 (8) -4; W&C Trailer: TA-791; Ride Height (in): 13.5; Min Height (in): 6.4; : 9 10-17.5; Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
