AS95800
Air Spring
Kenworth
IN STOCK
More than 10 are currently available
Ships within 1 business day
$209.95
$251.94
This truck part is made by Kenworth. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

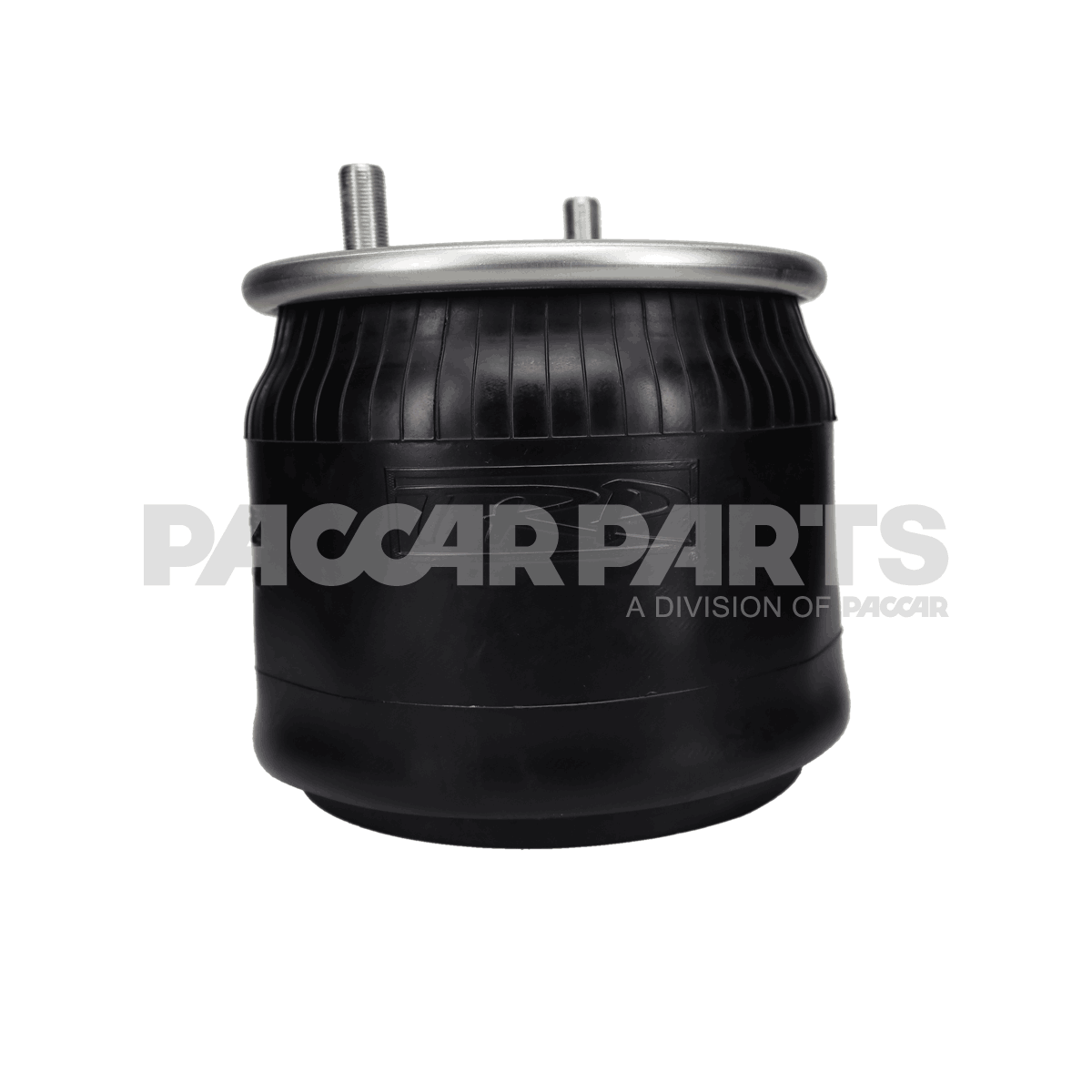

The Air Spring is a versatile rear air suspension component designed for heavy-duty trucks, supporting load and ride height adjustments. Made from a chemically formulated vulcanized material, it offers excellent ozone resistance and durability. With a ride height of 15 inches and a maximum height of 24.4 inches, it ensures a smooth and stable ride. The 13.7-inch diameter and weight of about 15.10 pounds make it suitable for demanding applications. This rolling lobe design features an optimized wall thickness for improved fatigue life and leak resistance. Compatible with various brands like Hendrickson and Goodyear, it guarantees long-lasting performance. Whether replacing worn parts or upgrading your suspension system, this air spring provides reliable support. Source One Parts Center is the best place to purchase genuine OEM parts for Kenworth vehicles, ensuring quality, longevity, and optimal performance.
SPECIFICATIONS
VMRS Code
016-008-001
OEM Part Number
AS95800
Details
Load at 80 psi (lb): 6100; Ride Height (in): 15; : Rolling Lobe; Weight (lb): 15.0964; Min Height (in): 7.2; Plate Diameter (in): 10; Load at 100 psi (lb): 7650; : Composite; : Hendrickson Trailer S20127, Good Year 1R13-118, 1R13-081, Firestone W01-358-9580, W01-358-9262, Triangle 8434, Loadguard SC2761; Max Height (in): 24.4; : 10 10-21; Diameter (in): 13.7; Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
