$234.95
$281.94
This truck part is made by Kenworth. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

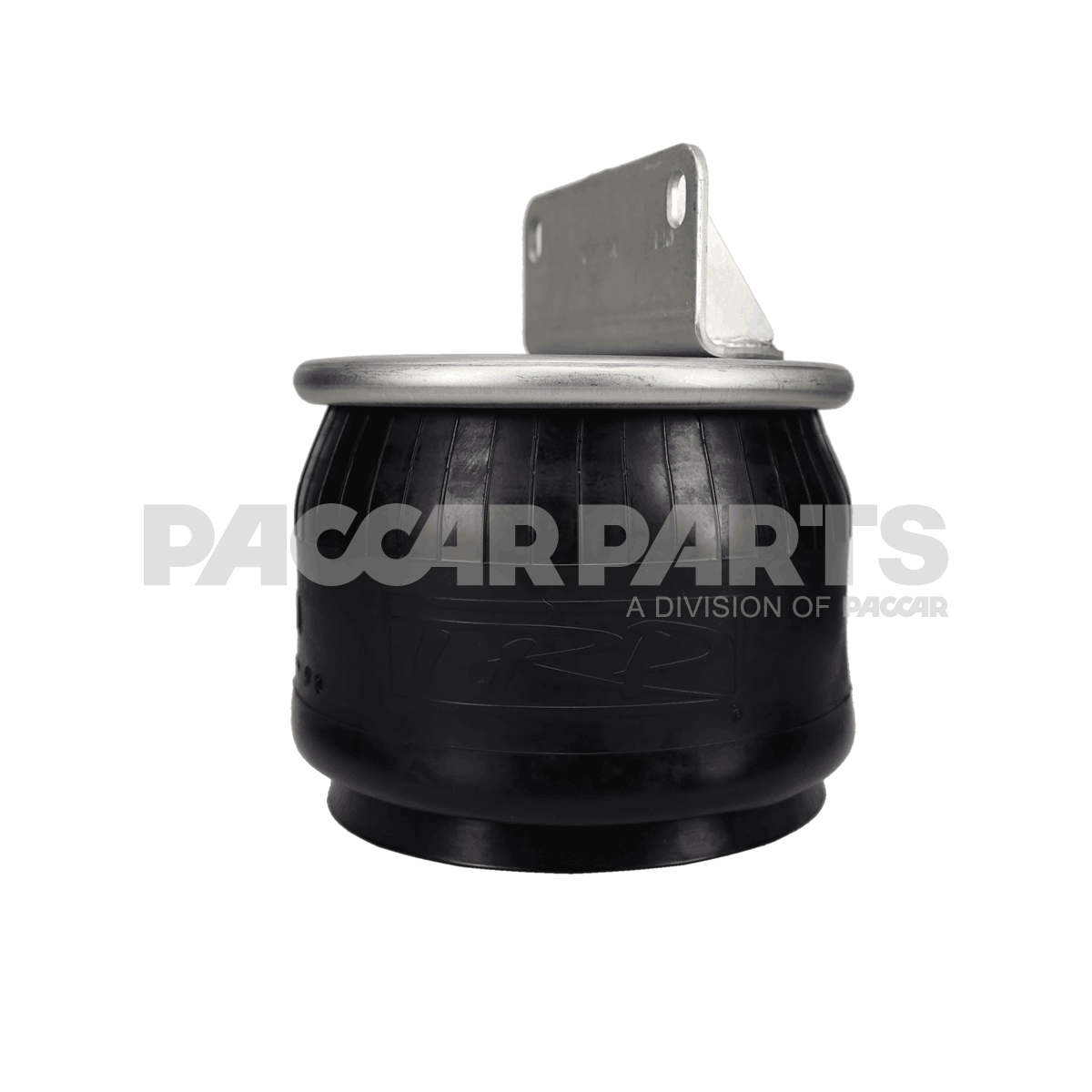

The Airbag is a critical component of rear air suspension systems, designed to provide adjustable support and ride comfort for Kenworth trucks. Constructed from a chemically formulated vulcanized material, it resists ozone effects and offers enhanced fatigue life through optimized wall thickness. With a maximum height of 12.4 inches, a ride height of 7 inches, and a minimum height of 3.9 inches, this airbag ensures stable suspension performance. Its 9-inch plate diameter and weight of approximately 11.07 pounds make it a reliable and durable part. The rolling lobe design allows for effective load support and ride quality. Whether replacing worn airbags or upgrading suspension components, this part guarantees longevity and consistent performance. Source One Parts Center is the best place to purchase genuine OEM parts for Kenworth vehicles, ensuring quality, longevity, and optimal performance.
SPECIFICATIONS
VMRS Code
016-008-001
OEM Part Number
AS95410
Details
Max Height (in): 12.4; Ride Height (in): 7; Min Height (in): 3.9; : Composite; : Rolling Lobe; Plate Diameter (in): 9; : 9 9-10; Weight (lb): 11.066; Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
