AS93750

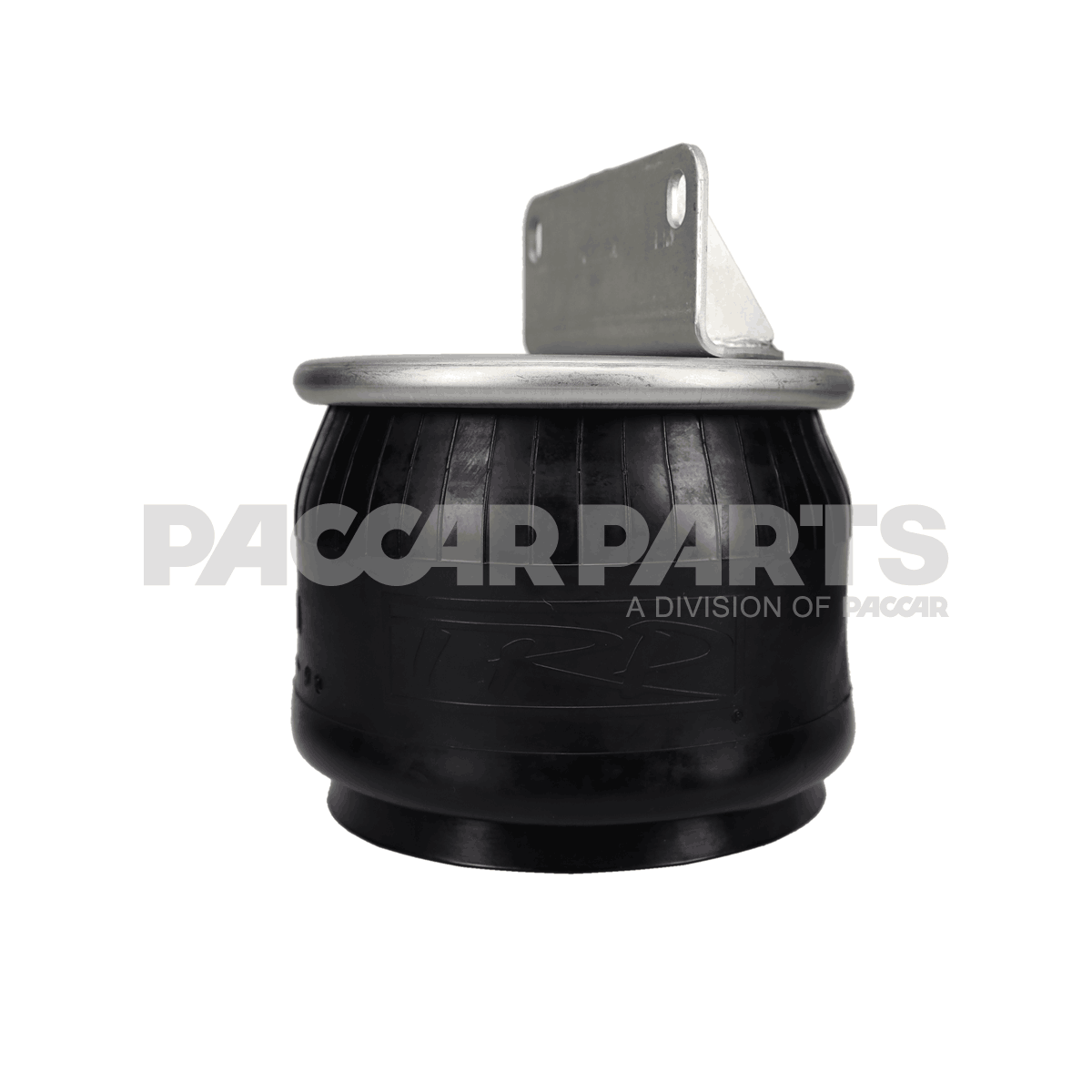

Air Spring
Kenworth
AVAILABLE
More than 10 are currently available
Ships within 8-10 business days
$229.95
$275.94
This truck part is made by Kenworth. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Spring is a high-performance component designed for rear air suspension systems, providing optimal ride height and load support for Kenworth trucks. Crafted from chemically formulated vulcanized material, this air spring withstands ozone effects and offers enhanced fatigue life through optimized wall thickness and a higher burst rate fabric. With a ride height of 12.5 inches and a maximum height of 23.1 inches, it ensures smooth and stable suspension performance. The 9-inch plate diameter and weight of approximately 16.33 pounds make it a durable and reliable choice for heavy-duty applications. Whether replacing worn-out parts or upgrading your suspension system, this air spring delivers superior durability and ride quality. Source One Parts Center is the best place to purchase genuine OEM parts for Kenworth vehicles, ensuring quality, longevity, and optimal performance.
SPECIFICATIONS
VMRS Code
016-008-001
OEM Part Number
AS93750
Details
Ride Height (in): 12.5; : Composite; : 9 10-18.5; : Rolling Lobe; Min Height (in): 8; : Hendrickson: 50899-1, 50899-2; Mack: 57QL414M, 3645Q27; Plate Diameter (in): 9; Weight (lb): 16.3306; Max Height (in): 23.1; Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
