AS92950
Air Spring for Neway
Kenworth
AVAILABLE
4 are currently available
Ships within 8-10 business days
$279.95
$335.94
This truck part is made by Kenworth. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

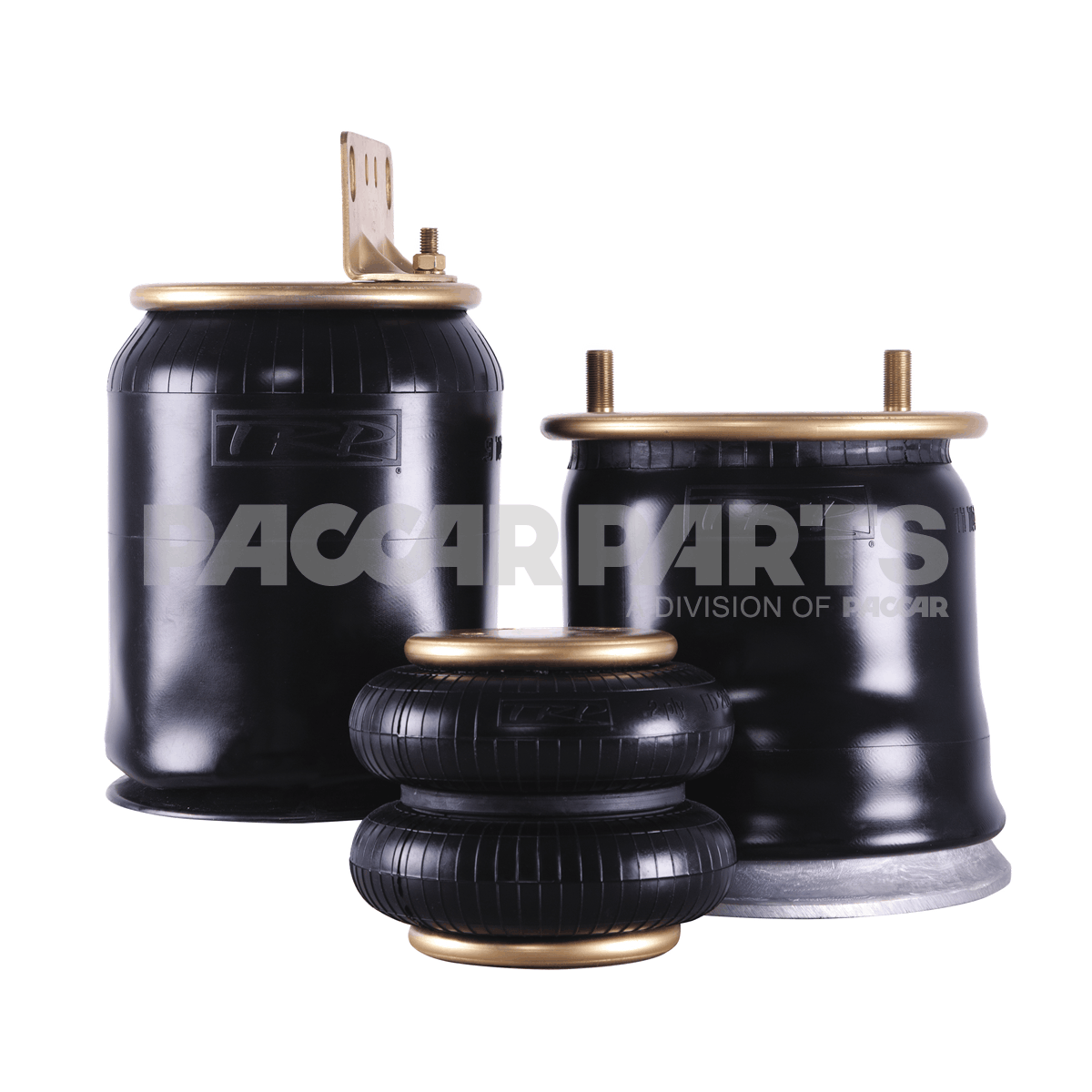

The Air Spring for Neway is a premium suspension component engineered for heavy-duty trailer and truck applications. Crafted with a specialized fabric material that offers a higher burst rate, this air spring ensures long-lasting performance and safety. Its design features an 10.8-inch diameter, with a maximum height of 20.5 inches and a minimum height of 7.3 inches, providing versatile ride height adjustment. Supporting loads up to 5,900 pounds at 100 psi, this air spring is ideal for Neway, Hendrickson HT-250U, and related trailer systems. The component is fully leak tested and chemically vulcanized to withstand ozone effects and environmental stressors. Easy to install and maintain, it enhances suspension durability and ride quality. When sourcing genuine OEM parts, Source One Parts Center is your best choice for authentic Kenworth suspension components that deliver superior performance and reliability.
SPECIFICATIONS
VMRS Code
016-008-001
OEM Part Number
AS92950
Details
Min Height (in): 7.3; Ride Height (in): 13.5; : 9 9K-15; Load at 80 psi (lb): 4700; Load at 100 psi (lb): 5900; Diameter (in): 10.8; : Rolling Lobe; Weight (lb): 12.6984; : Neway; Hendrickson: HT-250U; Neway Trailer Air: RL-196-15, 16, 196A-15, 16; Max Height (in): 20.5; : Composite; Plate Diameter (in): 9; Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
