4110321C91

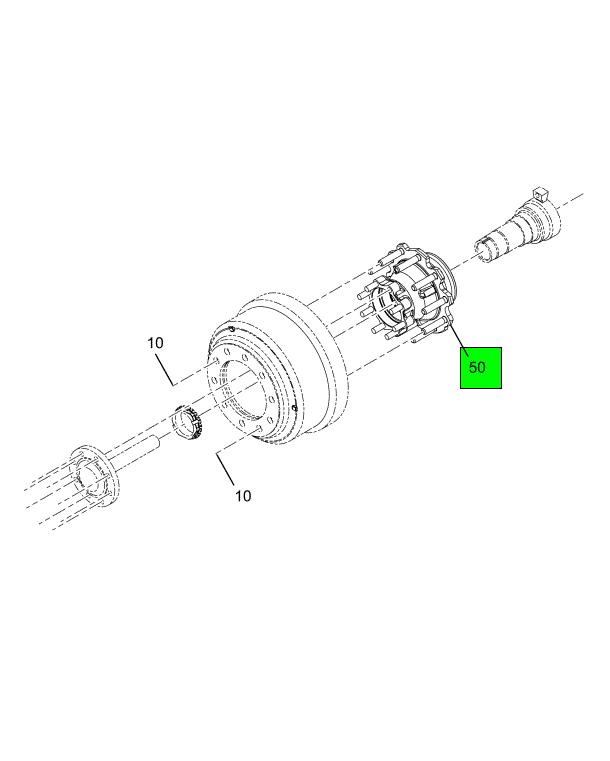

HUB, REAR WHEEL, R IRON 10-285
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$819.95
$983.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HUB, REAR WHEEL, R IRON 10-285 PS PLUS P, ALUMINUM RIM ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS))
Weight
66 lbs

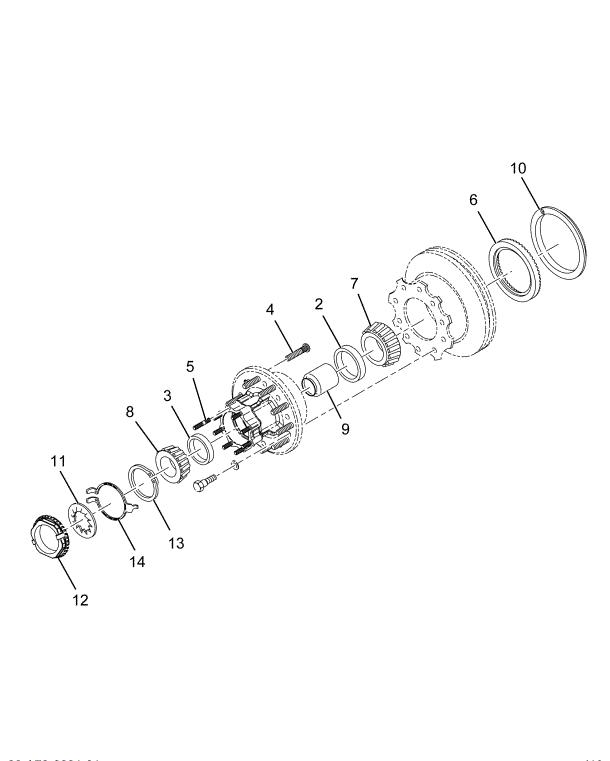

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SEAL, SCOT XL | 1 | CR47691 |
| WASHER, LOCK- SPINDLE NUT | 1 | 2510676C1 |
| NUT, SPINDLE | 1 | 2510675C1 |
| RING, SNAP- DOUBLE WIND | 1 | 2510674C1 |
| SNAP RING RETAINER | 1 | 2517395C1 |
| CUP, BEARING INBOARD | 1 | 2518408C1 |
| CUP, BEARING OUTBOARD | 1 | 2518410C1 |
| STUD, WHEEL M22 X 1.5 MM X 4.57 LONG | 10 | 2596613C1 |
| STUD, AXLE | 8 | 2600584C1 |
| RING, EXCITER REAR | 1 | 2503654C1 |
| CONE BEARING INBOARD | 1 | 2518409C1 |
| CONE BEARING OUTBOARD | 1 | 2518411C1 |
| SPACER, BEARING | 1 | 2510677C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
